CAMSHAFT 540C W/PLT WC M8

Ole ensimmäinen, joka arvostelee tämän tuotteen

Varastossa

Tuotekoodi

09251364

Special Price 2 135,00 € Regular Price 2 440,00 €

Lähetämme: 20.04.2026–21.04.2026 välisenä aikana

Toimitus osoitteeseen

Laske toimituskulut

Maa

Osavaltio/provinssi

Määrä

Laske osamaksu

▼

Valitse tarjoaja

Käsiraha

€

Lainasumma: –

Maksukausi

24 kuukautta

3 kuukautta 60 kuukautta

Kuukausierä – €

Tuotteen hinta –

Lainasumma –

Kokonaissumma –

Korkokulut –

Korkoprosentti –

Sopimusmaksu –

Hallintomaksu –

Enimmäislainasumma –

Laskuri tiedot ovat suuntaa-antavia. Lopullinen tarjous riippuu tarjoajan ehdoista ja luottopäätöksestä.

Details

Oil Pump/Cam Plate:
Precision machined from billet aluminum
Blue anodized finish
Passage plugs removable for servicing
Independant scavenge sections for flywheel cavity and cam chest
Debris screens in both pickups
Magnet in cam chest to help stop debris from entering oil pump
Increased flow capacity on both feed and scavenge side
Adjustable pressure relief vale is adjustable with unit installed in engine
Includes S&S high performance cam chain tensioner
Pushrods:
Quickee pushrods
Tappets:
S&S precision tappets
Tappet Cuffs:
Hard anodized black coating
Billet aluminum construction
Stronger than stock material eliminates distortion
Improves tappet stability in high lift and high rpm situations
Cam:
Includes all gaskets, bearings and hardware for installation
Made in the USA

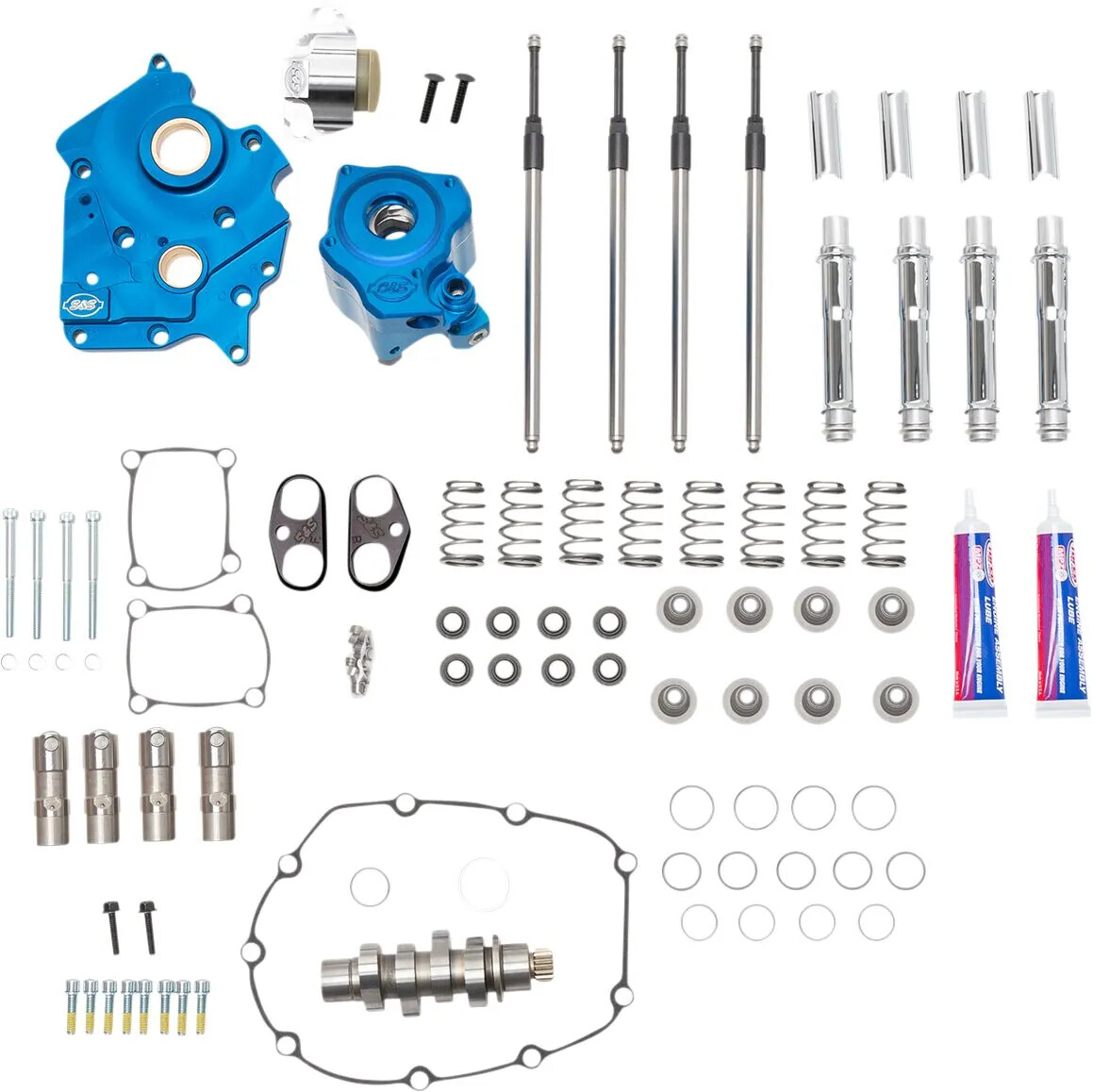

540 cam is designed for acceleration torque in 124" and larger engines. Enhances torque output in 4.25" big bore kits. Kit Includes: • Quickee Pushrod Kit with Chrome Covers • Tappet Cuffs Lifter Guide • Oil Pump with Cam Plate • Hydraulic Tappet Set • 540C Camshaft Kit • Spring Kit • Cam Chain Tensioner.

Brand

S&S CYCLE

Vendor Part Number

310-1116A

Application

Water Cooled

Exhaust Close

33,9° Front, 26,9° Rear

Exhaust Duration

235,1° Front, 244,6° Rear

Exhaust Lift

0,540"

Exhaust Lift at TDC

0,262" Front, 0,216" Rear

Exhaust Lobe Centerline

83,6° Front, 95,4° Rear

Exhaust Open

21,2° Front, 37,7° Rear

Features

Chrome Pushrod Tubes

Grind

540C

Intake Close

30,6° Front, 28,7° Rear

Intake Duration

228,3° Front, 223,6° Rear

Intake Lift

0,540"

Intake Lift at TDC

0,175" Front, 0,161" Rear

Intake Lobe Centerline

96,4° Front, 96,9° Rear

Intake Open

17,7° Front, 14,9° Rear

Model

540 Big Bore Torque

Product Name

Camchest Kit

Type

Chain

Units

Kit

Lisätietoja

Lisätietoja
Paino	0.010000
Korkeus	3
Leveys	3
Brändi	S+S CYCLE
Pituus	3
Saatavuus	Keskusvarastossa
Toimittajan viite	310-1116A
Pistorasia	Ei
Toimitetaan / Lähetetään	1 arkipäivää
Kampanjat	Hinnagarantii
Asennustaulukko (kissa 1)	HARLEY DAVIDSON FLHTCU 1750 ABS ELECTRA GLIDE ULTRA CLASSIC 107 2017-2018 FLHTCUTG 1868 ABS TRI GLIDE ULTRA 114 2021-2022 FLHTCUTGSE 1923 ABS TRI GLIDE CVO 117 2022 FLHTCUTGSE 1923 ABS TRI GLIDE ULTRA CVO 117 2021 FLHTK 1750 ABS ELECTRA GLIDE ULTRA LIMITED 107 2017 FLHTK 1750 ABS ULTRA LIMITED 107 2018 FLHTK 1750 ABS ULTRA LIMITED ANNIVERSARY 107 2018 FLHTK 1750 ABS ULTRA LIMITED SHRINE EDITION 107 2018 FLHTK 1868 ABS GLIDE ULTRA LIMITED 114 2019-2022 FLHTK 1868 ABS ULTRA LIMITED SHRINE EDITION 114 2019-2021 FLHTKL 1750 ABS ELECTRA GLIDE ULTRA LIMITED LOW 107 2017 FLHTKL 1750 ABS ULTRA LIMITED LOW 107 2018 FLHTKL 1868 ABS ULTRA LIMITED LOW 114 2019 FLHTKSE 1868 ABS ELECTRA GLIDE ULTRA LIMITED CVO 114 2017 FLHTKSE 1923 ABS ULTRA LIMITED CVO 117 2018-2021 FLHTKSE 1923 ABS ULTRA LIMITED CVO ANNIVERSARY 117 2018 FLHXSE 1868 ABS STREET GLIDE CVO 114 2017 FLHXSE 1923 ABS STREET GLIDE CVO 117 2018-2022 FLTRK 1868 ABS ROAD GLIDE LIMITED 114 2020-2022 FLTRKSE 1923 ABS ROAD GLIDE LIMITED CVO 117 2022 FLTRU 1750 ABS ROAD GLIDE ULTRA 107 2017-2018 FLTRU 1868 ABS ROAD GLIDE ULTRA 114 2019 FLTRXSE 1923 ABS ROAD GLIDE CVO 117 2018-2022
