HNDLEBR W/INSTALL KT SCII

Ole ensimmäinen, joka arvostelee tämän tuotteen

Varastossa

Tuotekoodi

06013654

Special Price 835,00 € Regular Price 961,00 €

Tarneaeg: 1 arkipäivää

Saadavus: Keskusvarastossa

Lähetämme: 29.04.2026–30.04.2026 välisenä aikana

Toimitus osoitteeseen

Laske toimituskulut

Maa

Osavaltio/provinssi

Määrä

Laske osamaksu

▼

Valitse tarjoaja

Käsiraha

€

Lainasumma: –

Maksukausi

24 kuukautta

3 kuukautta 60 kuukautta

Kuukausierä – €

Tuotteen hinta –

Lainasumma –

Kokonaissumma –

Korkokulut –

Korkoprosentti –

Sopimusmaksu –

Hallintomaksu –

Enimmäislainasumma –

Laskuri tiedot ovat suuntaa-antavia. Lopullinen tarjous riippuu tarjoajan ehdoista ja luottopäätöksestä.

Details

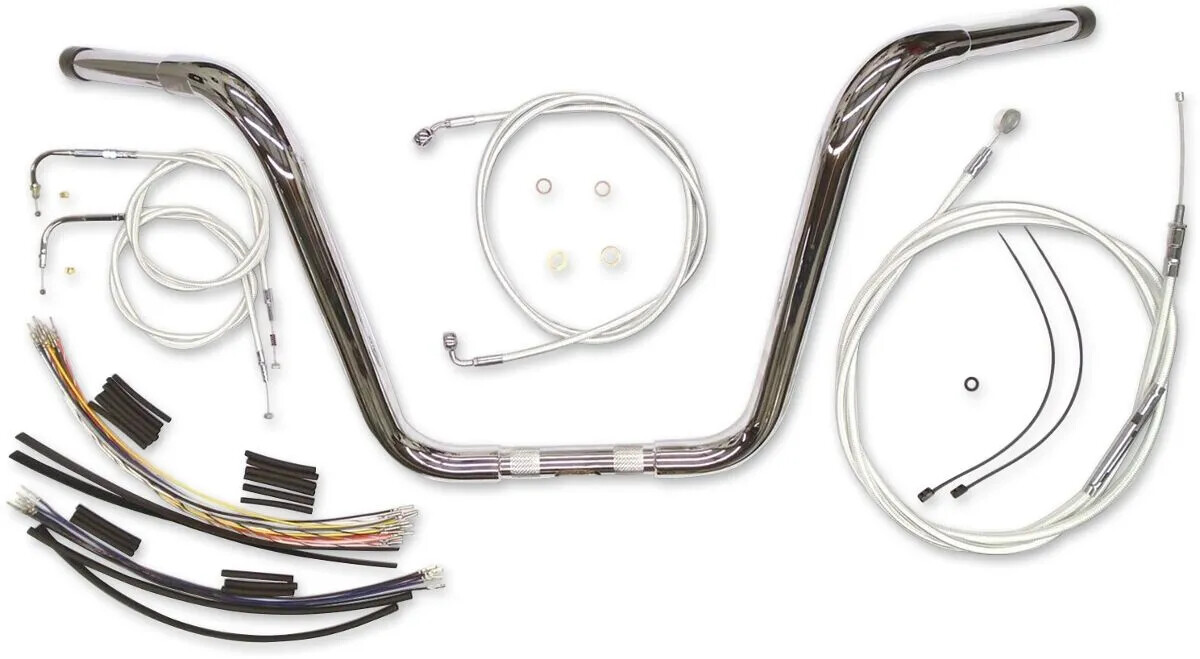

The only complete Handlebar Kits with matching braided cables and brake lines that include Magnum Caliber Handlebars
Magnum 1-1/4" Caliber handlebars are manufactured with the highest quality construction, including machined control mounts (not swaged) and feature high luster finish for an unsurpassed appearance
All handlebars are 1-1/4" diameter with 1" diameter center section and 3-1/2" on-center knurling, work with standard controls, including hydraulic clutch, and are machined for internal wiring and electric throttle control
All Caliber Handlebars are preloaded with E-Z pull-thru sleeving to make wiring installations a breeze
Kits include: Magnum 1-1/4" Caliber Handlebars, throttle and idle cables or throttle-by-wire extensions, a clutch cable or hydraulic clutch line, brake lines, copper crush washers, hardware, and any necessary switch wiring or turn signal extensions
All cables are a low effort, high efficiency design that meets or exceeds all OE specifications for fitment, construction, endurance
Kits for dual disc models include an all brazed manifold that eliminates leaks, alignment problems, and unattractive threaded connections
Assembled in the USA
Caliber Handlebars have a 1" diameter center section and fit 1" risers. Models originally equipped with handlebars that have a center section diameter larger than 1" will require changing the risers to a 1" ID version. Examples would be, but not limited to FLSTF, FLSTFB and CVO models. Please check before ordering.

Cable and line lengths are based on using 2" risers; except for Touring models

Brand

MAGNUM SHIELDING

Vendor Part Number

38844-116

Base Color

Silver

Finish

Chrome

Center Width

19,5 cm (7-3/4")

Clamping Diameter

25,4 mm (1")

Color/Finish

Chrome

Controls Diameter

25,4 mm (1")

End Rise

38 cm (15")

Features

Pre-Drilled, Notched for Throttle-By-Wire, For Non-ABS Models, Knurled Center

Handlebar Diameter

32 mm (1-1/4")

Height

40,5 cm (16")

Material

Steel

Product Name

Handlebar

Pullback/Sweep

20,5 cm (8")

Rise

40,5 cm (16")

Type/Bend

Installation Kit, Ape Hanger

Units

Kit

Width

89 cm (35")

Lisätietoja

Lisätietoja
Paino	6.300000
Korkeus	3
Leveys	3
Brändi	MAGNUM SHIELDING
Pituus	3
Saatavuus	Keskusvarastossa
Toimittajan viite	38844-116
Pistorasia	Ei
Toimitetaan / Lähetetään	1 arkipäivää
Kampanjat	Hinnagarantii
Asennustaulukko (kissa 1)	HARLEY DAVIDSON FLST 1450 HERITAGE SOFTAIL 2006 FLSTC 1450 HERITAGE SOFTAIL CLASSIC 2000-2006 FLSTCI 1450 EFI HERITAGE SOFTAIL CLASSIC 2001-2006 FLSTF 1450 FAT BOY 2000-2006 FLSTFI 1450 EFI FAT BOY 2001-2006 FLSTFI 1550 EFI FAT BOY 15TH ANNIVERSARY 2005 FLSTI 1450 EFI HERITAGE SOFTAIL 2006 FLSTN 1450 SOFTAIL DELUXE 2005-2006 FLSTNI 1450 EFI SOFTAIL DELUXE 2005-2006
