ENGINE KT SHOVEL 7466-77

Ole ensimmäinen, joka arvostelee tämän tuotteen

Varastossa

Tuotekoodi

09263314

Special Price 272,00 € Regular Price 335,00 €

Lähetämme: 16.04.2026–17.04.2026 välisenä aikana

Toimitus osoitteeseen

Laske toimituskulut

Maa

Osavaltio/provinssi

Määrä

Laske osamaksu

▼

Valitse tarjoaja

Käsiraha

€

Lainasumma: –

Maksukausi

24 kuukautta

3 kuukautta 60 kuukautta

Kuukausierä – €

Tuotteen hinta –

Lainasumma –

Kokonaissumma –

Korkokulut –

Korkoprosentti –

Sopimusmaksu –

Hallintomaksu –

Enimmäislainasumma –

Laskuri tiedot ovat suuntaa-antavia. Lopullinen tarjous riippuu tarjoajan ehdoista ja luottopäätöksestä.

Details

Kits include KPMI® or equivalent valve spring kit, a full set of Black Diamond™stainless steel standard size valves and are black nitride coated, H.T. (Heat Treated) steel valve keepers and valve stem seals (where applicable) for engine applications listed
Black Diamond™ valves are one piece forged stainless steel that are fortified by a special German process to improve wear properties and reduce friction
White Diamond® valves are CNC machined from one-piece forging of either EV8 stainless steel or Inconel-751 and are hard chromed with 360° anode to produce a hard chrome finish
Compatible with leaded and unleaded fuels
Sold as complete kit for one engine
Made in the USA

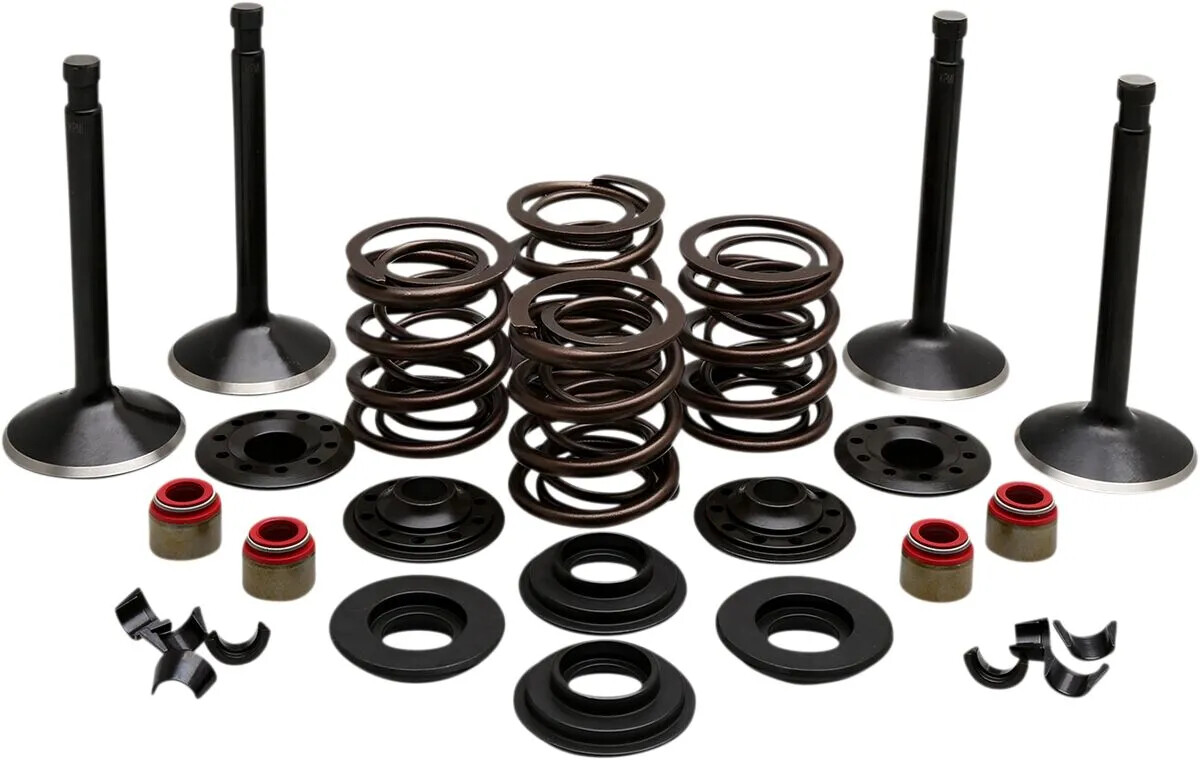

Kit Includes: • 2x Intake Valves • 2x Exhaust Valves • 4x Intake and Exhaust Retainers • 4x Pairs of Intake and Exhaust Keepers • 4x Intake and Exhaust Valve Springs • 4x Intake and Exhaust Base Washers • 4x Intake and Exhaust Red Vinton® Seals

Brand

KIBBLEWHITE

Vendor Part Number

20-22450

Application

Intake, Exhaust

Collar Material

H.T. Steel

Head Diameter

Intake 1,950", Exhaust 1,750"

Head Diameter

Intake 1.950", Exhaust 1.750"

Head Diameter

Intake 49.53 mm, Exhaust 44.45 mm

Length

Intake 3,885", Exhaust 3,810"

Length

Intake 3.885", Exhaust 3.810"

Material

Black Diamond™ Stainless

Product Name

Engine Kit

Spring Lift

0,415"

Spring Lift

0.415"

Spring Open Pressure

272 lb

Spring Seat Pressure

129 lb

Stem Diameter

Intake 0,3765", Exhaust 0,3760"

Stem Diameter

Intake 0.3765", Exhaust 0.3760"

Stem Diameter

Intake 9.60 mm, Exhaust 9.60 mm

Tulip Angle

Intake 23°, Exhaust 29°

Tulip Angle

Intake 23°, Exhaust 29°

Units

Kit

Valve Seat Height

1,375"

Valve Seat Height

1.375"

Lisätietoja

Lisätietoja
Paino	1.120000
Korkeus	70
Leveys	130
Brändi	KIBBLEWHITE
Pituus	190
Toimittajan viite	20-22450
Pistorasia	Ei
Asennustaulukko (kissa 1)	HARLEY DAVIDSON FL 1200 ELECTRA GLIDE 1970-1977 FLB 1200 ELECTRA GLIDE 1966-1969 FLFB 1200 ELECTRA GLIDE 1966-1969 FLH 1200 ELECTRA GLIDE 1970-1977 FLHB 1200 ELECTRA GLIDE 1966-1969 FLHFB 1200 ELECTRA GLIDE 1966-1969 FX 1200 SUPER GLIDE 1971-1977 FXE 1200 SUPER GLIDE 1974-1977 FXS 1200 LOW RIDER 1977
