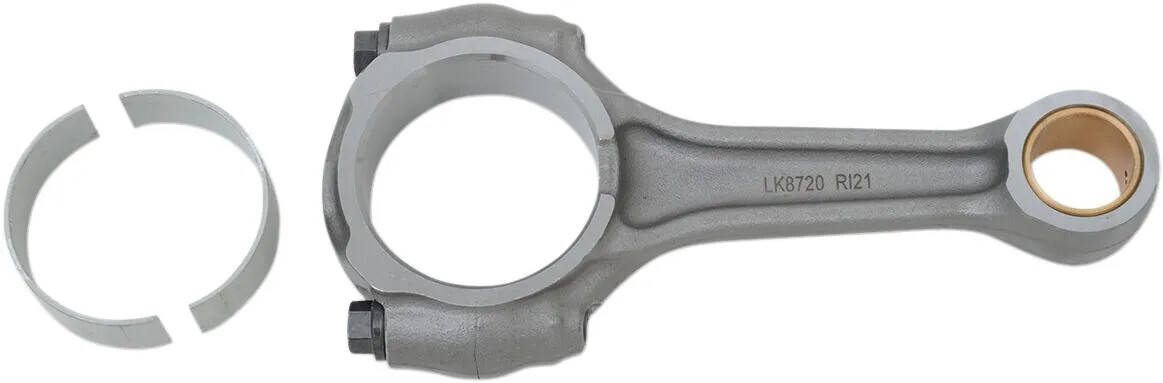

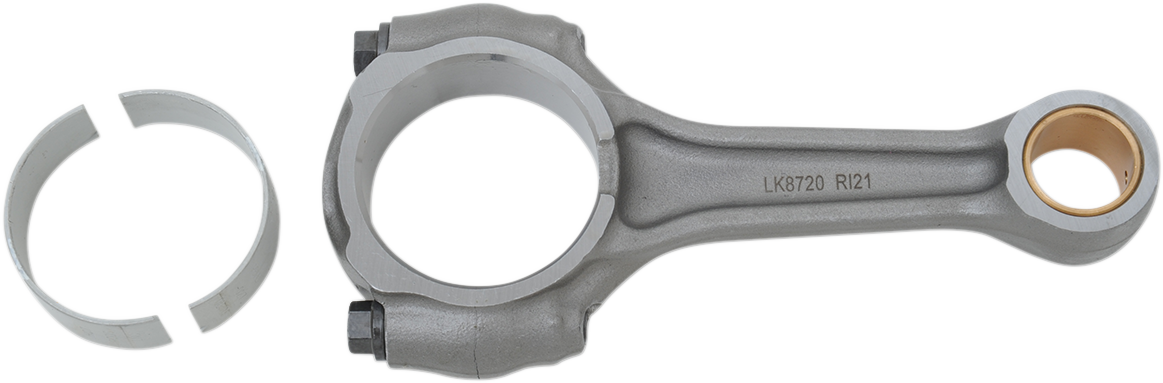

CONNECTING ROD

Ole ensimmäinen, joka arvostelee tämän tuotteen

Varastossa

Tuotekoodi

09230518

Special Price 184,00 € Regular Price 230,00 €

Lähetämme: 21.04.2026–22.04.2026 välisenä aikana

Toimitus osoitteeseen

Laske toimituskulut

Maa

Osavaltio/provinssi

Määrä

Laske osamaksu

▼

Valitse tarjoaja

Käsiraha

€

Lainasumma: –

Maksukausi

24 kuukautta

3 kuukautta 60 kuukautta

Kuukausierä – €

Tuotteen hinta –

Lainasumma –

Kokonaissumma –

Korkokulut –

Korkoprosentti –

Sopimusmaksu –

Hallintomaksu –

Enimmäislainasumma –

Laskuri tiedot ovat suuntaa-antavia. Lopullinen tarjous riippuu tarjoajan ehdoista ja luottopäätöksestä.

Details

Heavy-duty OE replacement connecting rods
Certified 8620 AISI steel provides superior strength
Crankpins are manufactured from hot-rolled ASTM 4115 and case hardened to level of 58-62Rc
Features the latest in caged needle roller bearing designs for high rpm longevity
Uniquely designed big end uses strategically located side scalloping and vent slots to minimize bearing race distortion at high rpm
Small ends are double drilled to supply extra lubrication and cooling to the wrist pin bearing, which is especially important when the piston crown is close to the wrist pin bearing
Shot-peened to eliminate surface stress risers and to smoothly blend together the rod forging's radiuses
Double honing produces an ultra-round bearing surface for reliability at high rpm
Most rod assemblies are sold complete with rod, crank pin, crank pin bearing, top-end bearing and silver-coated bronze phosphor thrust washers
Made in the USA
Compatible with Hot Rods and OE crankshafts.

Connecting Rod Big End I.D. 48.000 mm Connecting Rod Big End Width: 23.000 mm Connecting Rod Center-to-Center: 120.000 mm Connecting Rod Small End I.D. 20.000 mm Connecting Rod Small End Width: 23.000 mm Kit Includes: • Connecting Rod • Crank Pin Bearing.

Brand

HOT RODS

Vendor Part Number

8720

Displacement

1000 cc, 850 cc

Engine Type

4-Cycle

Material

8620 Steel

Product Name

Connecting Rod Kit

Units

Kit

Lisätietoja

Lisätietoja
Paino	0.560000
Korkeus	40
Leveys	85
Brändi	HOT RODS
Pituus	195
Viivakoodi EAN13	723980407873
Saatavuus	Keskusvarastossa
Toimittajan viite	8720
Pistorasia	Ei
Toimitetaan / Lähetetään	1-2 arkipäivää
Kampanjat	Hinnagarantii
Asennustaulukko (kissa 1)	POLARIS SCRAMBLER 850 4X4 2015-2018 SCRAMBLER XP 1000 4X4 EPS 2015-2018 SCRAMBLER XP 1000 4X4 EPS TOURING 2015 SCRAMBLER XP 1000 HO 4X4 EPS 2014 SPORTSMAN 1000 4X4 EPS FOREST 2015 SPORTSMAN 850 4X4 2016-2018 SPORTSMAN 850 4X4 EPS FOREST 2011-2015 SPORTSMAN 850 4X4 EPS TOURING 2010-2013 SPORTSMAN 850 4X4 HIGH LIFTER EDITION 2016-2018 SPORTSMAN 850 SP 4X4 EPS TOURING 2017-2018 SPORTSMAN XP 1000 4X4 EPS 2015-2017 SPORTSMAN XP 1000 4X4 EPS HIGH LIFTER EDITION 2016-2017 SPORTSMAN XP 1000 4X4 EPS TOURING 2015-2017 SPORTSMAN XP 850 4X4 2009-2013 SPORTSMAN XP 850 4X4 EPS 2009-2012 SPORTSMAN XP 850 HO 4X4 EPS 2013-2014
