CAM CHEST KIT CHRM PUSH TUBES

Ole ensimmäinen, joka arvostelee tämän tuotteen

Varastossa

Tuotekoodi

09251671

Special Price 2 543,00 € Regular Price 3 130,00 €

Lähetämme: 21.10.2026–03.11.2026 välisenä aikana

Toimitus osoitteeseen

Laske toimituskulut

Maa

Osavaltio/provinssi

Määrä

Laske osamaksu

▼

Valitse tarjoaja

Käsiraha

€

Lainasumma: –

Maksukausi

24 kuukautta

3 kuukautta 60 kuukautta

Kuukausierä – €

Tuotteen hinta –

Lainasumma –

Kokonaissumma –

Korkokulut –

Korkoprosentti –

Sopimusmaksu –

Hallintomaksu –

Enimmäislainasumma –

Laskuri tiedot ovat suuntaa-antavia. Lopullinen tarjous riippuu tarjoajan ehdoista ja luottopäätöksestä.

Details

Oil pump and cam plate are precision-machined from billet aluminum with a blue anodized finish
Passage plugs are removable for servicing
Independent scavenge sections for the flywheel cavity and cam chest
Debris screens in both scavenge pickups
Increased oil flow capacity on both the feed and the scavenge sides
Adjustable pressure relief valve is adjustable with the unit installed in the engine
S&S premium tappets
Billet aluminum tappet cuffs have a hard-anodized black coating and are stronger than stock to eliminate distortion and improves tappet stability in high-lift situations
Made in the USA
Includes cam chain tensioner.
Will fit M8 with VVT.

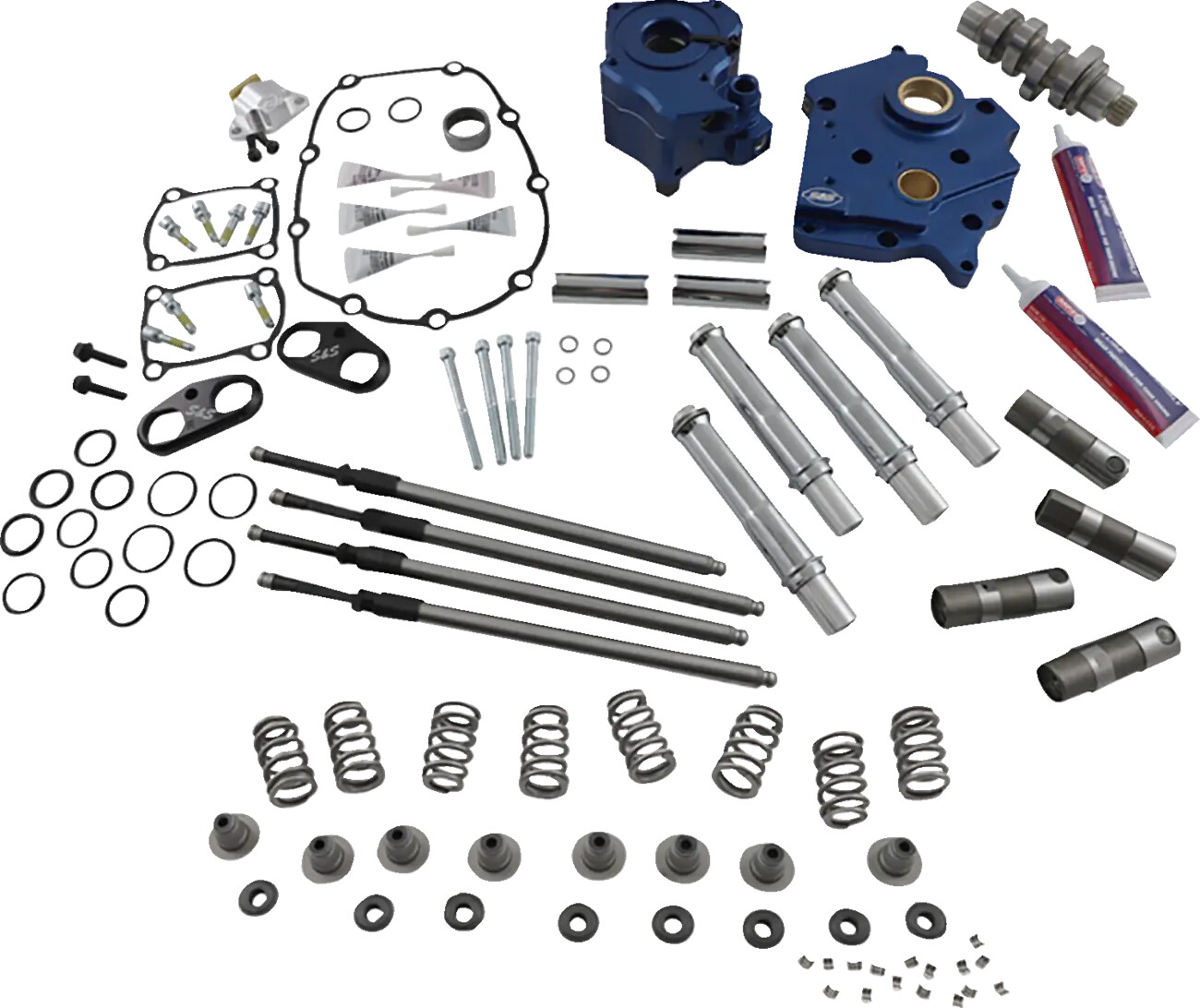

540 cam is designed for acceleration torque in 124" and larger engines. Enhances torque output for 4.25" big bore kits. Kit Includes: • Oil Pump Screw Kit • Cam Chain Installation Kit • Quickee Pushrod Kit with Chrome Covers • Tappet Cuffs Lifter Guide • 3" S&S® Blue and White Logo Decal • Cam Plate Support Assembly • Oil Cooled Oil Pump Assembly • Hydraulic Precision Tappet Set • 540C Camshaft • Spring Kit • Cam Chain Tensioner • 1 oz Torco® Engine Assembly Lube

Brand

S&S CYCLE

Vendor Part Number

310-1118B

Application

Oil Cooled

Exhaust Close

33,9° Front, 26,9° Rear

Exhaust Duration

235,1° Front, 244,6° Rear

Exhaust Lift

0,540"

Exhaust Lift at TDC

0,262" Front, 0,216" Rear

Exhaust Lobe Centerline

83,6° Front, 95,4° Rear

Exhaust Open

21,2° Front, 37,7° Rear

Features

Chrome Pushrod Tubes

Grind

540C

Intake Close

30,6° Front, 28,7° Rear

Intake Duration

228,3° Front, 223,6° Rear

Intake Lift

0,540"

Intake Lift at TDC

0,175" Front, 0,161" Rear

Intake Lobe Centerline

96,4° Front, 96,9° Rear

Intake Open

17,7° Front, 14,9° Rear

Product Name

Camchest Kit

Type

Chain Drive

Units

Kit
