ECM W/AUTOTUNE - FLH 17-20

Ole ensimmäinen, joka arvostelee tämän tuotteen

Varastossa

Tuotekoodi

10202664

Special Price 1 346,00 € Regular Price 1 539,00 €

Lähetämme: 20.04.2026–21.04.2026 välisenä aikana

Toimitus osoitteeseen

Laske toimituskulut

Maa

Osavaltio/provinssi

Määrä

Laske osamaksu

▼

Valitse tarjoaja

Käsiraha

€

Lainasumma: –

Maksukausi

24 kuukautta

3 kuukautta 60 kuukautta

Kuukausierä – €

Tuotteen hinta –

Lainasumma –

Kokonaissumma –

Korkokulut –

Korkoprosentti –

Sopimusmaksu –

Hallintomaksu –

Enimmäislainasumma –

Laskuri tiedot ovat suuntaa-antavia. Lopullinen tarjous riippuu tarjoajan ehdoista ja luottopäätöksestä.

Details

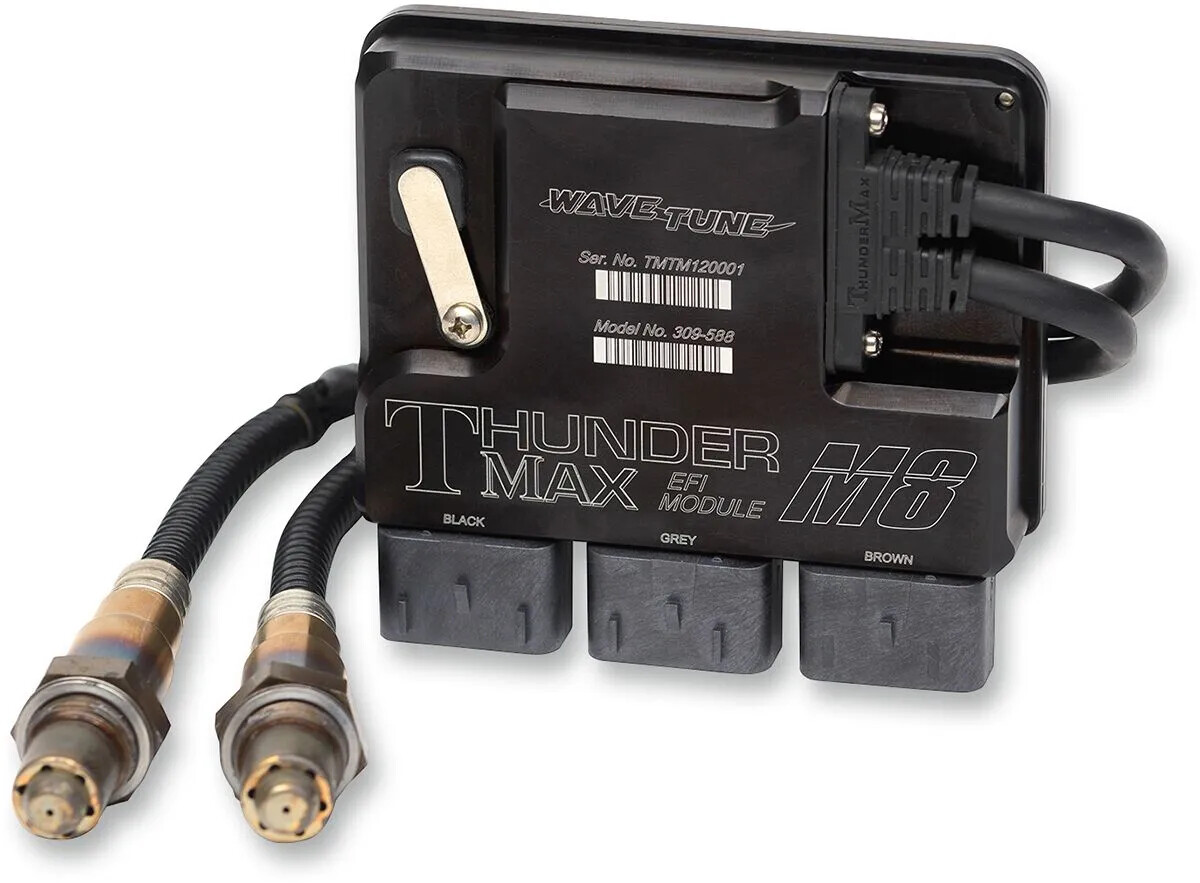

Includes ThunderMax ECM with Auto-Tune Module, plug-in harness and two wide-band sensors, TMax software and communication USB cable, Quick-Start Easy Install and Comprehensive User's Manual, technical support and free software and updates
Hundreds of maps available to download for your bike (based on model, engine size, exhaust system air cleaner, pistons, cams, etc.) - load the map of your choice and the integral auto-tune will do the rest
Software program allows live monitoring, recording and examination of diagnostic codes and datalogs including number of starts, engine temperature and rpm operation
Utilizes wide-band oxygen sensors and works as a closed-loop control system to continuously self-adjust and properly tune the motorcycle's air/fuel ratio for all riding conditions
ThunderMax ECM with Auto-Tune module mounts conveniently in place of the factory ECM and plugs in to the existing harness
Easy installation: replace the factory ECM, install new oxygen sensors and harness, load the correct map for your bike, and ride
New maps, software, firmware updates, map analysis and tech support available online at no charge
Adjustable front and rear cylinder AFR maps, ignition timing (spark) maps, and startup maps
Works with all popular exhaust systems and is compatible with high-performance camshafts
Rider can adjust idle speed, rev limit and speedometer calibration
Improves throttle response, exhaust sound and driveability
Supports turbo, nitrous and supercharger applications
Does not require dyno tuning
Made in the USA

Will not work on trikes with traction control. ThunderMax modules use wide band 18 mm O2 sensors; users may need to weld-in 18 mm bungs in the stock head pipe, 3"-4" from cylinder heads on both front and rear.

Brand

THUNDERMAX

Vendor Part Number

309-588

Base Color

Black

Color/Finish

Black

Features

Includes Oxygen Sensor, Closed Loop

Model

ThunderMax

Product Name

Engine Control Unit

Programming

Autotune, Downloadable Maps

Type

Air/Fuel Ratio

Units

Kit

Lisätietoja

Lisätietoja
Paino	1.060000
Korkeus	70
Leveys	230
Brändi	THUNDERMAX
Pituus	275
Toimittajan viite	309-588
Saatavuus	Keskusvarastossa
Pistorasia	Ei
Toimitetaan / Lähetetään	1 arkipäivää
Kampanjat	Hinnagarantii
Asennustaulukko (kissa 1)	HARLEY DAVIDSON FLHR 1750 ABS ROAD KING 107 2017-2020 FLHR 1750 ROAD KING 107 2017-2019 FLHRXS 1868 ABS ROAD KING SPECIAL 114 2019-2020 FLHT 1750 ABS ELECTRA GLIDE STANDARD 107 2019-2022 FLHTCU 1750 ABS ELECTRA GLIDE ULTRA CLASSIC 107 2019 FLHTCUTG 1750 ABS TRI GLIDE ULTRA 107 2019 FLHTCUTG 1868 ABS TRI GLIDE ULTRA 114 2020 FLHTK 1868 ABS GLIDE ULTRA LIMITED 114 2019-2020 FLHTKL 1868 ABS ULTRA LIMITED LOW 114 2019 FLHTKSE 1923 ABS ULTRA LIMITED CVO 117 2019-2020 FLHX 1750 ABS STREET GLIDE 107 2017-2022 FLHX 1750 ABS STREET GLIDE ANNIVERSARY 107 2018 FLHX 1750 STREET GLIDE 107 2017-2019 FLHXS 1750 ABS STREET GLIDE SPECIAL 107 2018 FLHXS 1868 ABS STREET GLIDE SPECIAL 114 2021-2022 FLHXS 1868 ABS STREET GLIDE SPECIAL 114 ARCTIC BLAST LIMITED 2021 FLHXSE 1923 ABS STREET GLIDE CVO 117 2021-2022 FLRT 1750 ABS FREEWHEELER 107 2019 FLRT 1868 ABS FREEWHEELER 114 2020 FLTRK 1868 ABS ROAD GLIDE LIMITED 114 2020-2022 FLTRU 1750 ABS ROAD GLIDE ULTRA 107 2017-2018 FLTRX 1750 ABS ROAD GLIDE 107 2017-2022 FLTRX 1750 ROAD GLIDE 107 2017-2019 FLTRXS 1868 ABS ROAD GLIDE SPECIAL 114 2019-2022
