ECM W/AUTOTUNE - FXD 04-11 / X

Ole ensimmäinen, joka arvostelee tämän tuotteen

Varastossa

Tuotekoodi

10202361

Special Price 1 346,00 € Regular Price 1 539,00 €

Lähetämme: 21.04.2026–22.04.2026 välisenä aikana

Toimitus osoitteeseen

Laske toimituskulut

Maa

Osavaltio/provinssi

Määrä

Laske osamaksu

▼

Valitse tarjoaja

Käsiraha

€

Lainasumma: –

Maksukausi

24 kuukautta

3 kuukautta 60 kuukautta

Kuukausierä – €

Tuotteen hinta –

Lainasumma –

Kokonaissumma –

Korkokulut –

Korkoprosentti –

Sopimusmaksu –

Hallintomaksu –

Enimmäislainasumma –

Laskuri tiedot ovat suuntaa-antavia. Lopullinen tarjous riippuu tarjoajan ehdoista ja luottopäätöksestä.

Details

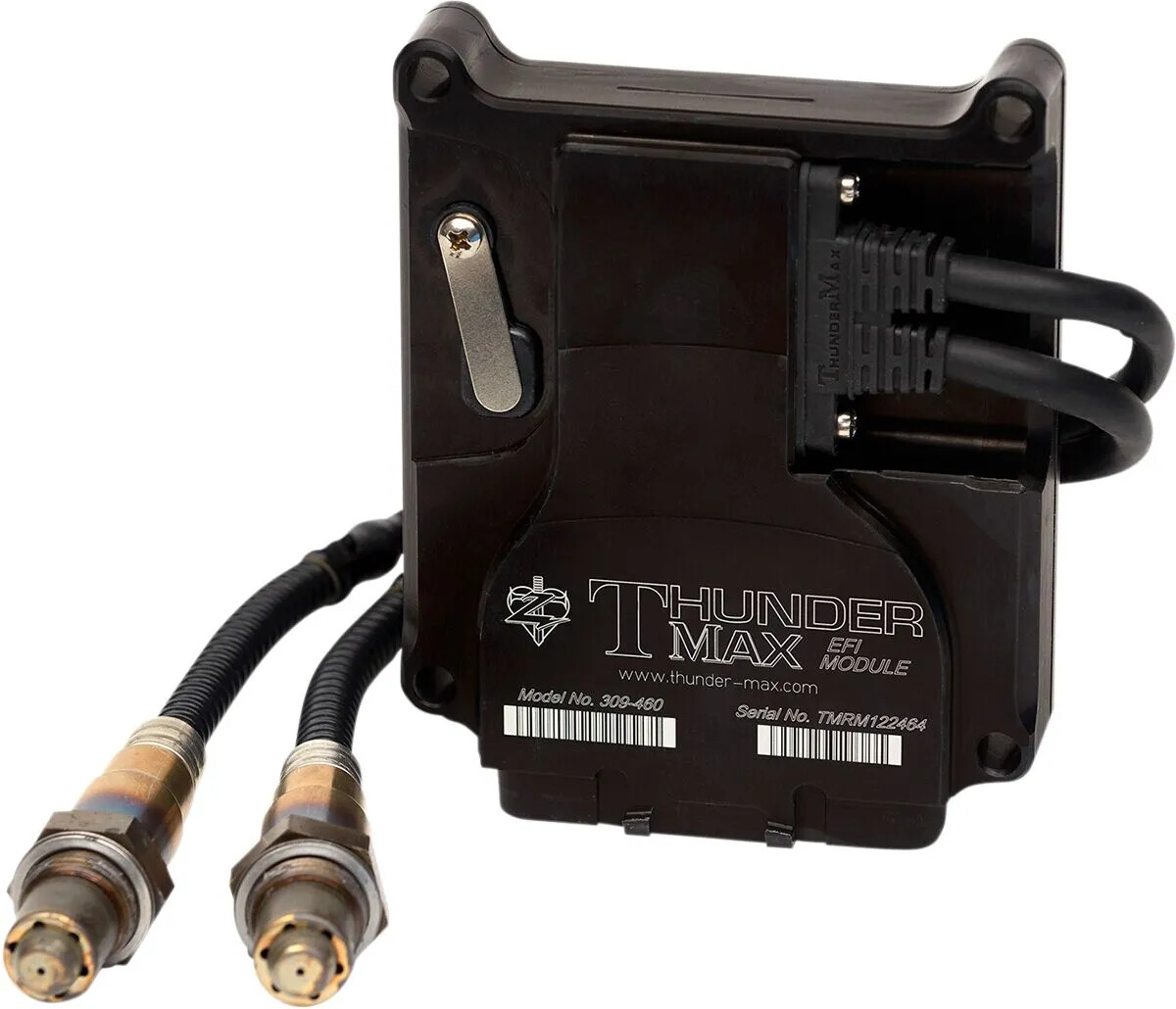

Includes ThunderMax ECM with Auto-Tune Module, plug-in harness and two wide-band sensors, TMax software and communication USB cable, Quick-Start Easy Install and Comprehensive User's Manual, technical support and free software and updates
Hundreds of maps available to download for your bike (based on model, engine size, exhaust system air cleaner, pistons, cams, etc.) - load the map of your choice and the integral auto-tune will do the rest
Software program allows live monitoring, recording and examination of diagnostic codes and datalogs including number of starts, engine temperature and rpm operation
Utilizes wide-band oxygen sensors and works as a closed-loop control system to continuously self-adjust and properly tune the motorcycle's air/fuel ratio for all riding conditions
ThunderMax ECM with Auto-Tune module mounts conveniently in place of the factory ECM and plugs in to the existing harness
Easy installation: replace the factory ECM, install new oxygen sensors and harness, load the correct map for your bike, and ride
New maps, software, firmware updates, map analysis and tech support available online at no charge
Adjustable front and rear cylinder AFR maps, ignition timing (spark) maps, and startup maps
Works with all popular exhaust systems and is compatible with high-performance camshafts
Rider can adjust idle speed, rev limit and speedometer calibration
Improves throttle response, exhaust sound and driveability
Supports turbo, nitrous and supercharger applications
Does not require dyno tuning
Made in the USA

Because of possible clearance issues, some aftermarket exhaust systems may require modifications or relocation of their oxygen sensor port bungs. Includes mini USB pigtail.

Brand

THUNDERMAX

Vendor Part Number

309-485

Base Color

Black

Color/Finish

Black

Features

Includes Oxygen Sensor, Closed Loop

Model

ThunderMax

Product Name

Engine Control Unit

Programming

Autotune, Downloadable Maps

Type

Air/Fuel Ratio

Units

Kit

Lisätietoja

Lisätietoja
Paino	1.210000
Korkeus	65
Leveys	230
Brändi	THUNDERMAX
Pituus	280
Toimittajan viite	309-485
Saatavuus	Keskusvarastossa
Pistorasia	Ei
Toimitetaan / Lähetetään	1 arkipäivää
Kampanjat	Hinnagarantii
Asennustaulukko (kissa 1)	HARLEY DAVIDSON FLSTN 1584 SOFTAIL DELUXE 2009 FXCW 1584 ROCKER 2008-2009 FXCWC 1584 ROCKER C 2008-2010 FXD 1450 DYNA SUPER GLIDE 2004-2005 FXD 1584 DYNA SUPER GLIDE 2007-2010 FXDWG 1450 DYNA WIDE GLIDE 2004-2005 FXDWG 1584 DYNA WIDE GLIDE 2007,2010-2011 FXDWG 1584 DYNA WIDE GLIDE 105TH ANNIVERSARY 2008 XL 1200 C SPORTSTER CUSTOM 2010-2013 XL 1200 C SPORTSTER CUSTOM 110TH ANNIVERSARY 2013 XL 1200 L LOW 2010-2011 XL 1200 N NIGHTSTER 2010-2012 XL 1200 V SEVENTY-TWO 2012-2013 XL 1200 X FORTY-EIGHT 2010-2013 XR 1200 2008-2010 XR 1200 X 2011-2012
