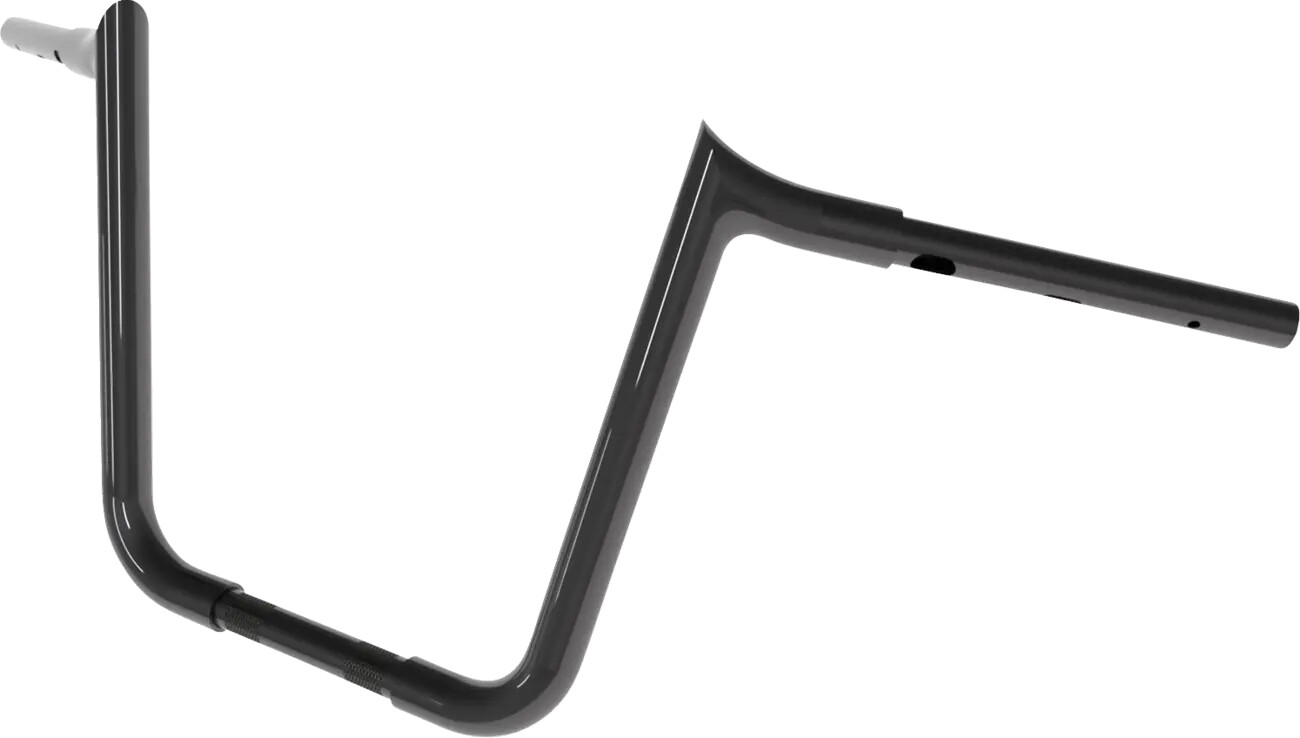

HANDLEBAR VIKING 16 BLACK

Ole ensimmäinen, joka arvostelee tämän tuotteen

Varastossa

Tuotekoodi

06017027

Special Price 536,00 € Regular Price 612,00 €

Tarneaeg: 1 arkipäivää

Saadavus: Keskusvarastossa

Lähetämme: 29.04.2026–30.04.2026 välisenä aikana

Toimitus osoitteeseen

Laske toimituskulut

Maa

Osavaltio/provinssi

Määrä

Laske osamaksu

▼

Valitse tarjoaja

Käsiraha

€

Lainasumma: –

Maksukausi

24 kuukautta

3 kuukautta 60 kuukautta

Kuukausierä – €

Tuotteen hinta –

Lainasumma –

Kokonaissumma –

Korkokulut –

Korkoprosentti –

Sopimusmaksu –

Hallintomaksu –

Enimmäislainasumma –

Laskuri tiedot ovat suuntaa-antavia. Lopullinen tarjous riippuu tarjoajan ehdoista ja luottopäätöksestä.

Details

Patented Viking Handlebar internal design guarantees easy installations of complete wiring harnesses
Without taking away from the clean look of the peak, the novel design creates enough room to allow the complete wiring harness with factory vinyl covering and the terminal connections, along with their respective shrink sleeves, to easily pass through without chaffing
Using a unique flaring process, the burr-free internal radius creates a generous pocket of additional clearance within the troublesome peak of the handlebar
To make wiring installations even easier, Magnum preloads the bars with E-Z pull-thru plastic woven sleeving
Insert the wiring harness into the sleeving and pull through, it’s that simple
Manufactured with the highest quality construction, including smooth, round CNC mandrel bends, machined control mounts (not swaged), plus burr-free internal wiring holes, electronic throttle control slots, and high luster finishes for an unsurpassed appearance
Has 1-1/4" diameter, 1” diameter center sections, 3-1/2” on-center knurling, and works with standard controls, including hydraulic clutches
Not for use with stock risers or handlebar clamp/gauge mount clamp on 883C and 1200C models.
Viking handlebars have a 1" diameter center section and fit 1" risers. Models originally equipped with handlebars larger than 1" will require changing the risers to a 1" ID version.

Brand

MAGNUM SHIELDING

Vendor Part Number

4HB-2316

Base Color

Black

Finish

Gloss

Center Width

20,5 cm (8")

Clamping Diameter

25,4 mm (1")

Clamping Width

88,9 mm (3-1/2")

Color/Finish

Black, Gloss

Controls Diameter

25,4 mm (1")

End Rise

40,5 cm (16")

Features

For Hydraulic Clutch, Throttle-By-Wire Sensor in Control Housing, Pre-Drilled, Knurled Center

Handlebar Diameter

32 mm (1-1/4")

Height

40,5 cm (16")

Material

Steel

Product Name

Handlebar

Pullback/Sweep

15 cm (6")

Type/Bend

Viking, Ape Hanger

Units

Each

Width

95,5 cm (37-1/2")
