VALVE SPRINGS HILOAD SE

Ole ensimmäinen, joka arvostelee tämän tuotteen

Varastossa

Tuotekoodi

09261469

Special Price 430,00 € Regular Price 491,00 €

Lähetämme: 27.10.2026–09.11.2026 välisenä aikana

Toimitus osoitteeseen

Laske toimituskulut

Maa

Osavaltio/provinssi

Määrä

Laske osamaksu

▼

Valitse tarjoaja

Käsiraha

€

Lainasumma: –

Maksukausi

24 kuukautta

3 kuukautta 60 kuukautta

Kuukausierä – €

Tuotteen hinta –

Lainasumma –

Kokonaissumma –

Korkokulut –

Korkoprosentti –

Sopimusmaksu –

Hallintomaksu –

Enimmäislainasumma –

Laskuri tiedot ovat suuntaa-antavia. Lopullinen tarjous riippuu tarjoajan ehdoista ja luottopäätöksestä.

Details

Made from premium stress-relieved conical ovate wire with nitrided surface heat treatment, shot-peened surface enhancements and Nano Peen™ polish
Uses a much smaller and lighter weight retainer to reduce valve weight and create quicker rev and smoother motion
Designed to handle the highest demands of performance engines with high-lift, steep-ramped camshafts
Allows up to 0.750" lift cams; no rocker box clearing required
Features extremely high level of fatigue life
Dyno proven and track tested

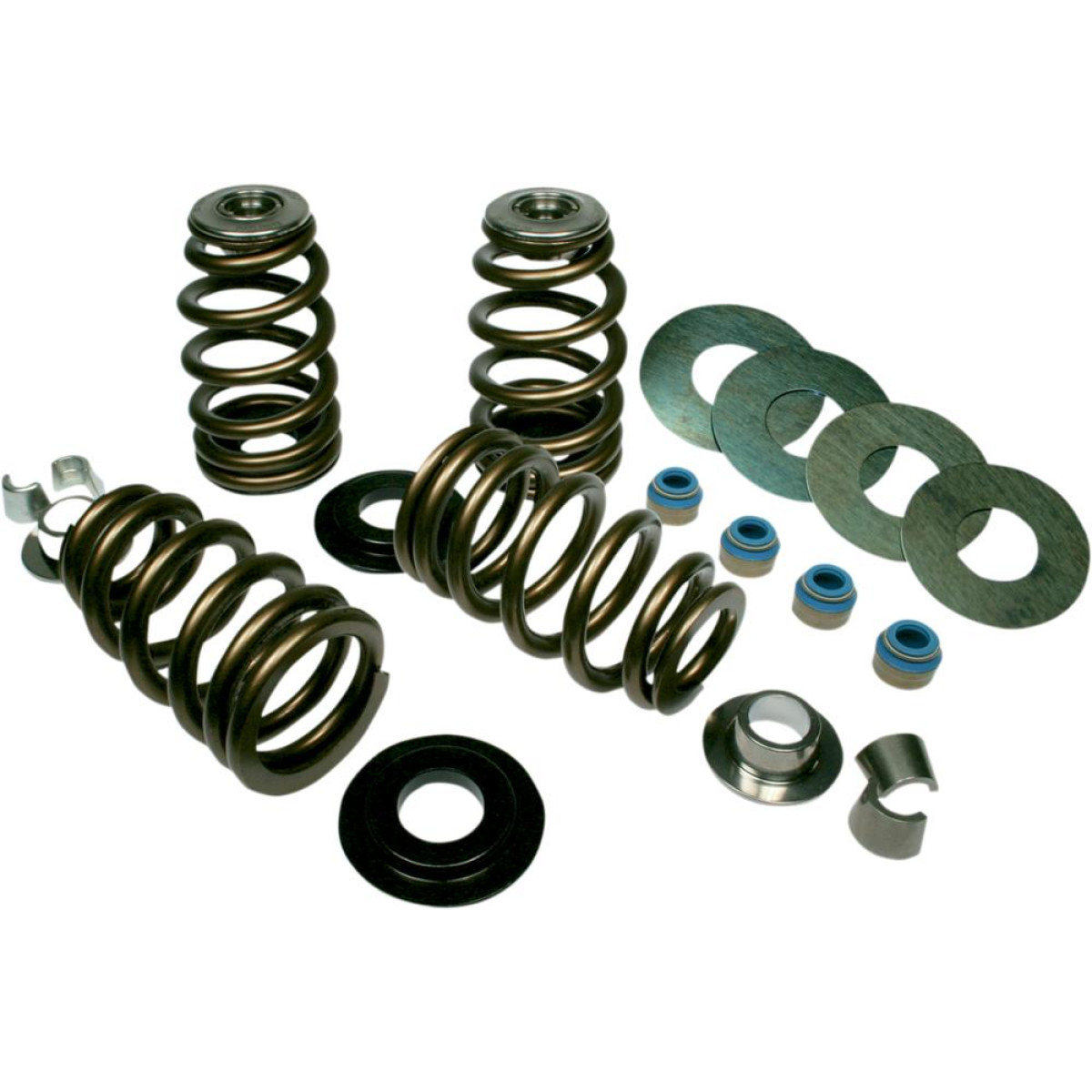

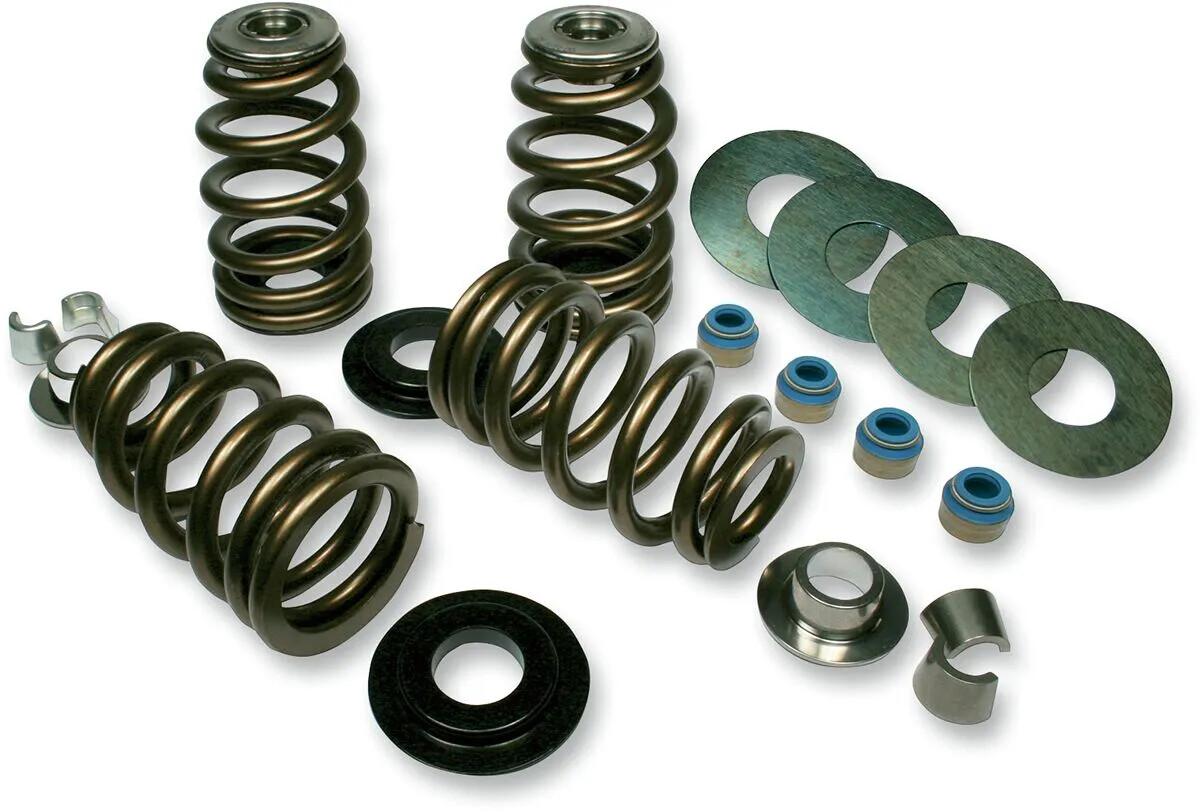

Kit includes High-Load BeeHive® valve springs, lightweight 10° Titanium retainers manufactured from Ti-17 alloy and micropolished for enhanced fatigue life, machined heat-treated chromoly spring seats, seat shims, valve locks and a set of premium Viton® valve seals equipped with spring-loaded valve stem wiper system
Made in the USA
Seat lb/installed height:
170 lb at 1.935" (0.720" lift)
185 lb at 1.900" (0.685" lift)
200 lb at 1.845" (0.630" lift)
208 lb at 1.819" (0.604" lift)
215 lb at 1.800" (0.585" lift)
217 lb at 1.789" (0.574" lift)
415 lb at 1.215" open height
Coil bind at 1.125"
Valve springs must be installed at the correct OPEN HEIGHT, matching max lift to the open height spec of the valve springs.
Feuling® BeeHive® valve spring kit is direct replacement with no machining or rocker box clearance required. Up to .574" lift for '84-'04 Big Twin and '86-'03 XL and up to .700" lift for '05-'17 Twin Cam. Larger camshafts require valve guide machining for seal-to-retainer clearance.

Fits Twin Cam Screamin' Eagle heads with 5/16" valve stems with standard keeper grooves and 0.530" diameter valve guides. Kit Includes: • 4x Springs • 4x Valve Seals • 4x Top Spring Retainers • 4x Bottom Spring Retainers • 4x Flat Washers • 4x Valve Keepers (8 Halves)

Brand

FEULING PARTS

Vendor Part Number

1201

Application

Exhaust, Intake

Collar Material

Titanium

Material

Steel

Model

High-Load Beehive

Product Name

Spring Kit

Spring Lift

0,750"

Spring Lift

0.750"

Type

Valve

Units

Kit

Lisätietoja

Lisätietoja
Paino	0.830000
Korkeus	98
Leveys	161
Brändi	FEULING PARTS
Pituus	99
Saatavuus	Keskusvarastossa
Toimittajan viite	1201
Toimitetaan / Lähetetään	21-30 tööpäeva
Kampanjat	Hinnagarantii
Asennustaulukko (kissa 1)	HARLEY DAVIDSON FLHRSE3 1800 ROAD KING SCREAMIN EAGLE 2007 FLHRSE4 1800 ABS ROAD KING SCREAMIN EAGLE 2008 FLHRSE5 1800 ABS ROAD KING CVO 2013 FLHRSE6 1800 ABS ROAD KING CVO 2014 FLHRSEI 1550 ROAD KING SCREAMIN EAGLE 2002 FLHRSEI2 1690 ROAD KING SCREAMIN EAGLE 2003 FLHTCSE 1690 EFI ELECTRA GLIDE SCREAMIN EAGLE 2004 FLHTCSE2 1690 EFI ELECTRA GLIDE SCREAMIN EAGLE 2005 FLHTCUSE 1690 ELECTRA GLIDE ULTRA CLASSIC SCREAMIN EAGLE 2006 FLHTCUSE2 1800 ELECTRA GLIDE ULTRA CLASSIC SCREAMIN EAGLE 2007 FLHTCUSE3 1800 ABS ELECTRA GLIDE ULTRA CLASSIC SCREAMIN EAGLE 2008 FLHTCUSE4 1800 ABS ELECTRA GLIDE ULTRA CLASSIC CVO 2009 FLHTCUSE5 1800 ABS ELECTRA GLIDE ULTRA CLASSIC CVO 2010 FLHTCUSE6 1800 ABS ELECTRA GLIDE ULTRA CLASSIC CVO 2011 FLHTCUSE7 1800 ABS ELECTRA GLIDE ULTRA CLASSIC CVO 2012 FLHTCUSE8 1800 ABS ELECTRA GLIDE ULTRA CLASSIC CVO 2013 FLHTCUSE8 1800 ABS ELECTRA GLIDE ULTRA CLASSIC CVO 110TH ANNIVERSARY 2013 FLHTKSE 1800 ABS ELECTRA GLIDE ULTRA LIMITED CVO 2014-2016 FLHXSE 1800 ABS STREET GLIDE CVO 2010,2015-2016 FLHXSE2 1800 ABS STREET GLIDE CVO 2011 FLHXSE3 1800 ABS STREET GLIDE CVO 2012 FLSTFSE 1690 FAT BOY SCREAMIN EAGLE 2005 FLSTFSE2 1690 FAT BOY SCREAMIN EAGLE 2006 FLSTNSE 1800 ABS SOFTAIL DELUXE CVO 2014-2015 FLSTSE 1800 SOFTAIL CONVERTIBLE CVO 2010 FLSTSE2 1800 ABS SOFTAIL CONVERTIBLE CVO 2011 FLSTSE2 1800 SOFTAIL CONVERTIBLE CVO 2011 FLSTSE3 1800 ABS SOFTAIL CONVERTIBLE CVO 2012 FLTRSE3 1800 ABS ROAD GLIDE CVO 2009 FLTRSEI 1550 ROAD GLIDE SCREAMIN EAGLE 2000 FLTRSEI2 1550 ROAD GLIDE SCREAMIN EAGLE 2001 FLTRUSE 1800 ABS ROAD GLIDE ULTRA CVO 2011 FLTRUSE2 1800 ABS ROAD GLIDE ULTRA CVO 2015-2016 FLTRXSE 1800 ABS ROAD GLIDE CUSTOM CVO 2012 FLTRXSE2 1800 ABS ROAD GLIDE CUSTOM CVO 2013 FLTRXSE2 1800 ABS ROAD GLIDE CUSTOM CVO 110TH ANNIVERSARY 2013 FXDFSE 1800 DYNA FAT BOB CVO 2009 FXDFSE2 1800 DYNA FAT BOB CVO 2010 FXDSE 1800 DYNA SCREAMIN EAGLE 2007 FXDSE2 1800 DYNA SCREAMIN EAGLE 2008 FXSBSE 1800 ABS BREAKOUT CVO 2013 FXSBSE2 1800 ABS BREAKOUT CVO 2014 FXSE 1800 ABS PRO STREET BREAKOUT CVO 2016-2017 FXSTDSE 1550 SOFTAIL DEUCE SCREAMIN EAGLE 2003 FXSTDSE2 1550 SOFTAIL DEUCE SCREAMIN EAGLE 2004 FXSTSSE 1800 SOFTAIL SPRINGER SCREAMIN EAGLE 2007 FXSTSSE2 1800 SOFTAIL SPRINGER SCREAMIN EAGLE 2008 FXSTSSE3 1800 SOFTAIL SPRINGER CVO 2009
