VALVE SPRNGS HILOAD 85-05

Ole ensimmäinen, joka arvostelee tämän tuotteen

Varastossa

Tuotekoodi

09260853

523,00 €

Lähetämme: 08.11.2026–31.01.2027 välisenä aikana

Toimitus osoitteeseen

Laske toimituskulut

Maa

Osavaltio/provinssi

Määrä

Laske osamaksu

▼

Valitse tarjoaja

Käsiraha

€

Lainasumma: –

Maksukausi

24 kuukautta

3 kuukautta 60 kuukautta

Kuukausierä – €

Tuotteen hinta –

Lainasumma –

Kokonaissumma –

Korkokulut –

Korkoprosentti –

Sopimusmaksu –

Hallintomaksu –

Enimmäislainasumma –

Laskuri tiedot ovat suuntaa-antavia. Lopullinen tarjous riippuu tarjoajan ehdoista ja luottopäätöksestä.

Details

Made from premium stress-relieved conical ovate wire with nitrided surface heat treatment, shot-peened surface enhancements and Nano Peen™ polish
Uses a much smaller and lighter weight retainer to reduce valve weight and create quicker rev and smoother motion
Designed to handle the highest demands of performance engines with high-lift, steep-ramped camshafts
Allows up to 0.750" lift cams; no rocker box clearing required
Features extremely high level of fatigue life
Dyno proven and track tested

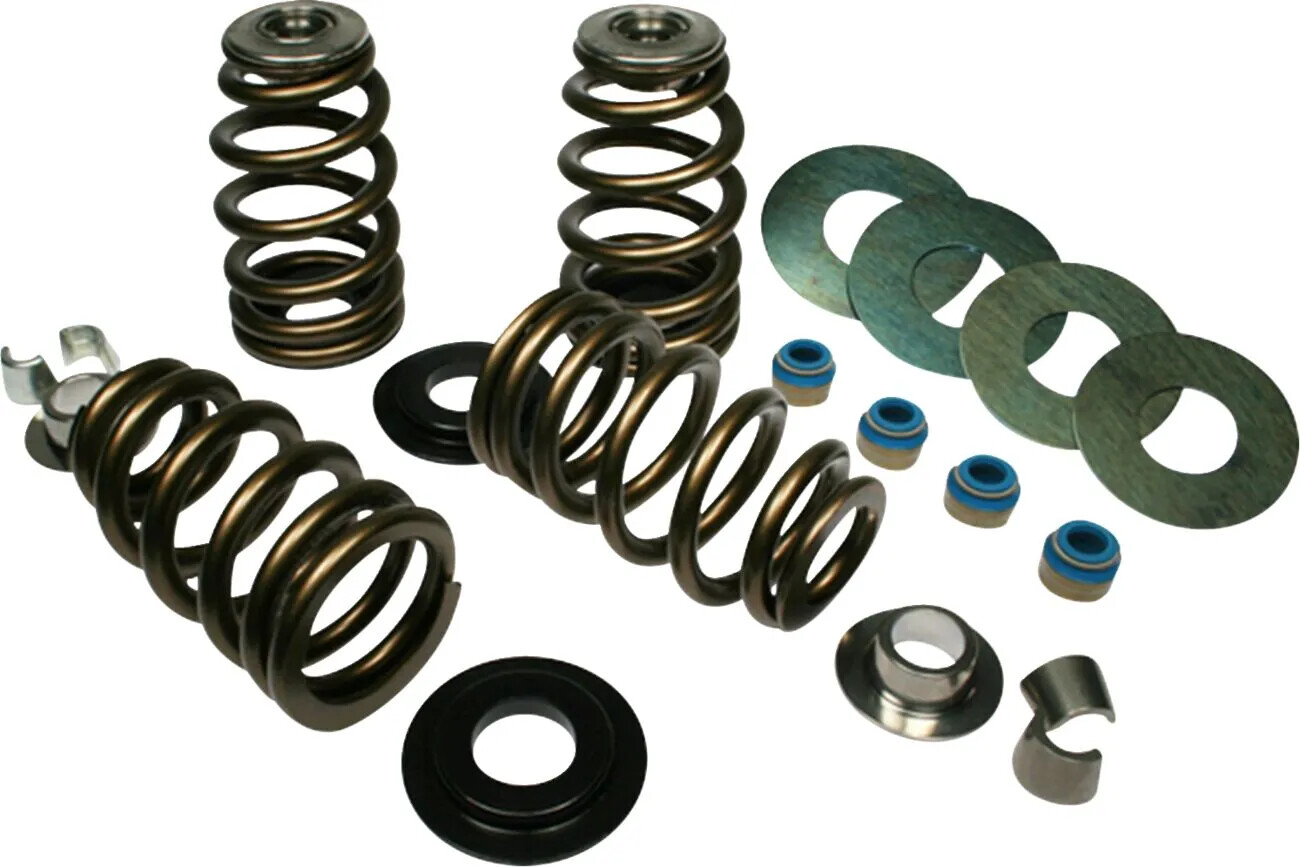

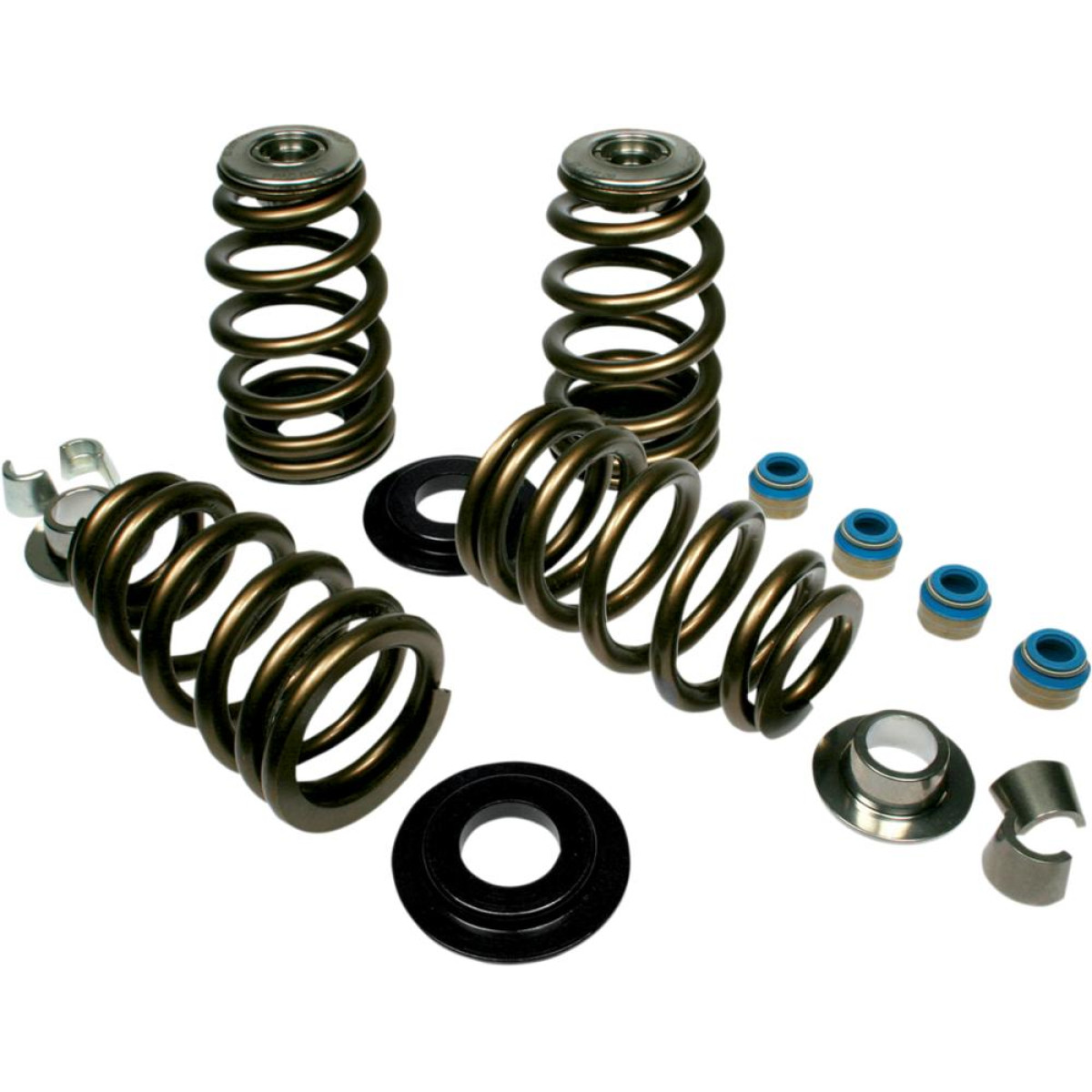

Kit includes High-Load BeeHive® valve springs, lightweight 10° Titanium retainers manufactured from Ti-17 alloy and micropolished for enhanced fatigue life, machined heat-treated chromoly spring seats, seat shims, valve locks and a set of premium Viton® valve seals equipped with spring-loaded valve stem wiper system
Made in the USA
Seat lb/installed height:
170 lb at 1.935" (0.720" lift)
185 lb at 1.900" (0.685" lift)
200 lb at 1.845" (0.630" lift)
208 lb at 1.819" (0.604" lift)
215 lb at 1.800" (0.585" lift)
217 lb at 1.789" (0.574" lift)
415 lb at 1.215" open height
Coil bind at 1.125"
Valve springs must be installed at the correct OPEN HEIGHT, matching max lift to the open height spec of the valve springs.
Feuling® BeeHive® valve spring kit is direct replacement with no machining or rocker box clearance required. Up to .574" lift for '84-'04 Big Twin and '86-'03 XL and up to .700" lift for '05-'17 Twin Cam. Larger camshafts require valve guide machining for seal-to-retainer clearance.

For '99-'04 Twin Cam and '86-'03 XL with 10°, standard 5/16" valve stem and keeper groove. Kit Includes: • 200+ lb Springs • Titanium Retainers • Seats • Seals • Keepers • Seat Shims

Brand

FEULING PARTS

Vendor Part Number

1200

Application

Exhaust, Intake

Collar Material

Titanium

Material

Steel

Model

High-Load Beehive

Product Name

Spring Kit

Spring Lift

0,750"

Spring Lift

0.750"

Type

Valve

Units

Kit

Lisätietoja

Lisätietoja
Paino	0.730000
Korkeus	98
Leveys	100
Brändi	FEULING PARTS
Pituus	158
Saatavuus	Tehdastilaus
Toimittajan viite	1200
Toimitetaan / Lähetetään	Kysy saatavuudesta
Asennustaulukko (kissa 1)	BUELL BLAST 2000-2003 M2 CYCLONE 1997-2002 M2 LOW CYCLONE 2002 S1 LIGHTNING 1996-1999 S1 WHITE LIGHTNING 1998-1999 S2 THUNDERBOLT 1995 S2T THUNDERBOLT 1995 S3 THUNDERBOLT 1996-2001 S3T THUNDERBOLT 1996-2002 X1 LIGHTNING 1999-2002 X1W WHITE LIGHTNING 2002 XB9R FIREBOLT 2002-2003 XB9S LIGHTNING 2003 HARLEY DAVIDSON FLH 1340 ELECTRA GLIDE BELT DRIVE 1984 FLH ELECTRA GLIDE STANDARD 1984-1985 FLHR 1340 ROAD KING 1994-1998 FLHR 1450 ROAD KING 1999-2004 FLHRC 1450 ROAD KING CLASSIC 2004 FLHRCI 1340 EFI ROAD KING CLASSIC 1998 FLHRCI 1450 EFI ROAD KING CLASSIC 1999-2004 FLHRI 1340 EFI ROAD KING 1996-1997 FLHRI 1450 EFI ROAD KING 1999-2004 FLHRS 1450 ROAD KING CUSTOM 2004 FLHRSEI 1550 ROAD KING SCREAMIN EAGLE 2002 FLHRSEI2 1690 ROAD KING SCREAMIN EAGLE 2003 FLHRSI 1450 EFI ROAD KING CUSTOM 2004 FLHS 1340 ELECTRA GLIDE SPORT 1987-1994 FLHT 1340 ELECTRA GLIDE 1984,1986-1988,1996-1998 FLHT 1340 ELECTRA GLIDE STANDARD 1995-1998 FLHT 1450 ELECTRA GLIDE 1999-2004 FLHTC 1340 ELECTRA GLIDE CLASSIC 1983-1998 FLHTC 1450 ELECTRA GLIDE CLASSIC 2002-2004 FLHTCI 1340 EFI ELECTRA GLIDE CLASSIC 1996-1998 FLHTCI 1450 EFI ELECTRA GLIDE CLASSIC 1999-2000,2003-2004 FLHTCU 1340 ELECTRA GLIDE ULTRA CLASSIC 1989-1997 FLHTCUI 1340 EFI ELECTRA GLIDE ULTRA CLASSIC 1996-1998 FLHTCUI 1340 EFI ELECTRA GLIDE ULTRA CLASSIC SPECIAL ANNIVERSARY EDITION 1995 FLHTCUI 1450 EFI ELECTRA GLIDE ULTRA CLASSIC 1999-2004 FLHTE 1340 ELECTRA GLIDE CLASSIC 1984 FLHTI 1450 EFI ELECTRA GLIDE 2004 FLHX 1340 ELECTRA GLIDE SPECIAL 1984-1985 FLST 1340 HERITAGE SOFTAIL 1986-1990 FLSTC 1340 HERITAGE SOFTAIL CLASSIC 1988-1999 FLSTC 1450 HERITAGE SOFTAIL CLASSIC 2000-2004 FLSTCI 1450 EFI HERITAGE SOFTAIL CLASSIC 2001-2004 FLSTF 1340 FAT BOY 1990-1999 FLSTF 1450 FAT BOY 2000-2004 FLSTFI 1450 EFI FAT BOY 2001-2004 FLSTN 1340 HERITAGE SOFTAIL 1996 FLSTN 1340 HERITAGE SOFTAIL NOSTALGIA 1993 FLSTN 1340 HERITAGE SOFTAIL SPECIAL 1994-1995 FLSTN 1340 HERITAGE SOFTAIL SPECIAL/NOSTALGIA 1993-1996 FLSTS 1340 HERITAGE SOFTAIL SPRINGER 1997-1999 FLSTS 1450 HERITAGE SOFTAIL SPRINGER 2000-2003 FLSTSI 1450 EFI HERITAGE SOFTAIL SPRINGER 2003 FLT 1340 TOUR GLIDE 1984 FLTC 1340 TOUR GLIDE CLASSIC 1984-1994 FLTCU 1340 TOUR GLIDE ULTRA CLASSIC 1989-1996 FLTR 1450 ROAD GLIDE 1999-2003 FLTRI 1340 EFI ROAD GLIDE 1998 FLTRI 1450 EFI ROAD GLIDE 1999-2004 FLTRSEI 1550 ROAD GLIDE SCREAMIN EAGLE 2000 FLTRSEI2 1550 ROAD GLIDE SCREAMIN EAGLE 2001 FXD 1340 DYNA SUPER GLIDE 1995-1998 FXD 1450 DYNA SUPER GLIDE 1999-2004 FXDB 1340 DYNA GLIDE DAYTONA 1992 FXDB 1340 DYNA GLIDE STURGIS 1991 FXDC 1340 DYNA GLIDE CUSTOM 1992 FXDG 1340 1984 FXDI 1450 EFI DYNA SUPER GLIDE 2004 FXDL 1340 DYNA GLIDE LOW RIDER 1993-1998 FXDL 1340 DYNA LOW RIDER 1993-1998 FXDL 1450 DYNA LOW RIDER 1999-2004 FXDLI 1450 EFI DYNA LOW RIDER 2004 FXDS-CON 1340 DYNA GLIDE LOW RIDER CONVERTIBLE 1994-2000 FXDS-CON 1340 DYNA SUPER GLIDE CONVERTIBLE 1994-2000 FXDWG 1340 DYNA WIDE GLIDE 1993-1998 FXDWG 1450 DYNA WIDE GLIDE 1999-2004 FXDWG2 1450 DYNA WIDE GLIDE LIMITED EDITION 2001 FXDWG3 1450 DYNA WIDE GLIDE LIMITED EDITION 2002 FXDWGI 1450 EFI DYNA WIDE GLIDE 2004 FXDX 1450 DYNA SUPER GLIDE SPORT 1999-2004 FXDXI 1450 EFI DYNA SUPER GLIDE SPORT 2004 FXDXT 1450 DYNA SUPER GLIDE T-SPORT 2001-2003 FXE 1340 SUPER GLIDE 1984 FXEF 1340 FAT BOB 1985-1986 FXLR 1340 LOW RIDER CUSTOM 1987-1994 FXR 1340 II SUPER GLIDE II 1984 FXR 1340 SUPER GLIDE 1986-1994 FXR2 1340 SUPER GLIDE SCREAMIN EAGLE 1999 FXR3 1340 SUPER GLIDE SCREAMIN EAGLE 1999 FXR4 1340 SUPER GLIDE SCREAMIN EAGLE 2000 FXRC 1340 LOW GLIDE CUSTOM 1985-1987 FXRD 1340 DISC GLIDE 1986 FXRDG 1340 DISC GLIDE 1984-1985 FXRP 1340 SPORT GLIDE POLICE 1984 FXRS 1340 LOW GLIDE 1984-1985 FXRS 1340 LOW RIDER 1986-1992 FXRS CON. 1340 LOW RIDER CONVERTIBLE 1989-1993 FXRS-SP 1340 LOW RIDER SPORT EDITION (FXRSL) 1986-1993 FXRT 1340 SPORT GLIDE 1984-1992 FXSB 1340 LOW RIDER 1984-1985 FXST 1340 SOFTAIL 1985-1990,1999 FXST 1450 SOFTAIL 2000-2004 FXSTB 1340 SOFTAIL NIGHT TRAIN 1998-1999 FXSTB 1450 SOFTAIL NIGHT TRAIN 2000-2004 FXSTBI 1450 EFI SOFTAIL NIGHT TRAIN 2003-2004 FXSTC 1340 SOFTAIL CUSTOM 1986-1999 FXSTD 1450 SOFTAIL DEUCE 2000-2004 FXSTDI 1450 EFI SOFTAIL DEUCE 2001-2004 FXSTDSE 1550 SOFTAIL DEUCE SCREAMIN EAGLE 2003 FXSTDSE2 1550 SOFTAIL DEUCE SCREAMIN EAGLE 2004 FXSTI 1450 EFI SOFTAIL 2003-2004 FXSTS 1340 SOFTAIL SPRINGER 1988-1999 FXSTS 1450 SOFTAIL SPRINGER 2000-2004 FXSTSB 1340 BAD BOY 1995-1997 FXSTSI 1450 EFI SOFTAIL SPRINGER 2003-2004 FXWG 1340 WIDE GLIDE 1984-1986 XL 1200 C SPORTSTER CUSTOM 1996-2003 XL 1200 S SPORT 1996-2003 XL 883 C SPORTSTER 53 CUSTOM 1998-2003 XL 883 R ROADSTER 2002-2003 XL 883 SPORTSTER 1986-2003 XLH 1100 SPORTSTER 1986-1987 XLH 1200 SPORTSTER 1988-2003 XLH 883 SPORTSTER 1986-1987,1990-2003 XLH 883 SPORTSTER DELUXE 1988-1995 XLH 883 SPORTSTER HUGGER 1988-2003
