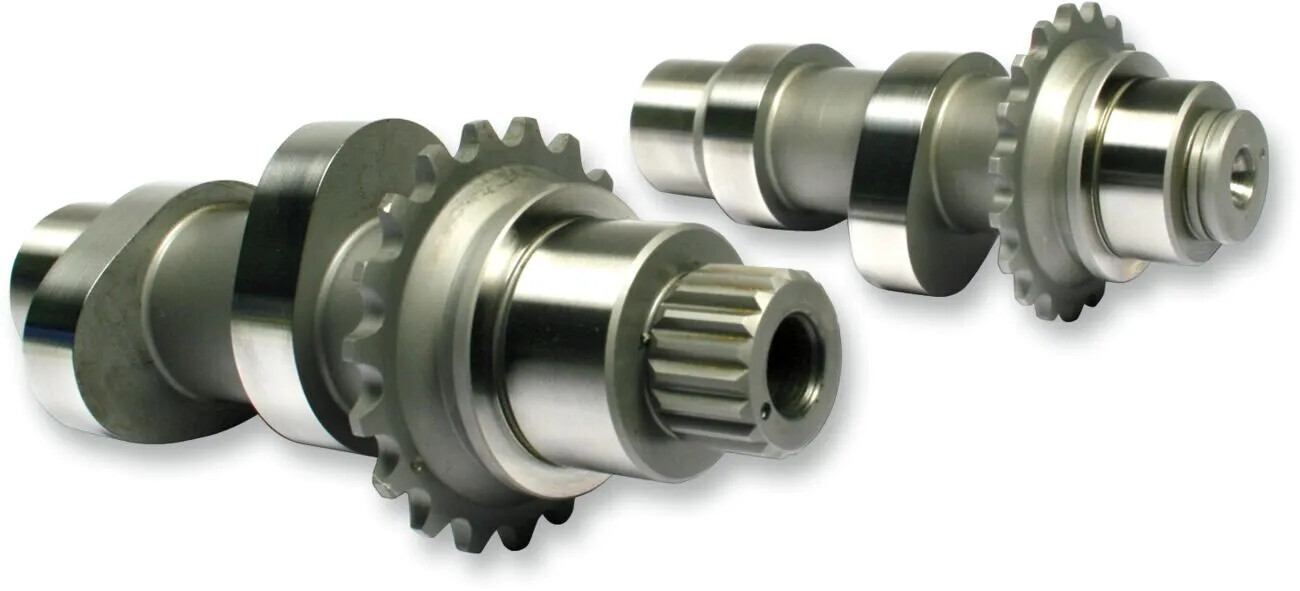

CAMS CONV 574C 99-06TC

Ole ensimmäinen, joka arvostelee tämän tuotteen

Varastossa

Tuotekoodi

09250607

Special Price 499,00 € Regular Price 571,00 €

Lähetämme: 21.04.2026–22.04.2026 välisenä aikana

Toimitus osoitteeseen

Laske toimituskulut

Maa

Osavaltio/provinssi

Määrä

Laske osamaksu

▼

Valitse tarjoaja

Käsiraha

€

Lainasumma: –

Maksukausi

24 kuukautta

3 kuukautta 60 kuukautta

Kuukausierä – €

Tuotteen hinta –

Lainasumma –

Kokonaissumma –

Korkokulut –

Korkoprosentti –

Sopimusmaksu –

Hallintomaksu –

Enimmäislainasumma –

Laskuri tiedot ovat suuntaa-antavia. Lopullinen tarjous riippuu tarjoajan ehdoista ja luottopäätöksestä.

Details

Wide power band for modified engines
Bolt in for stock 103" and 110" engines
Works well with 95", 106", 107" and 114" big bore engines
RPM range 2000-6800
Smooth lobe design creates a very smooth valvetrain motion
Responds to modified cylinder heads, increased compression ratio, performance exhaust and intake systems
Performance pushrods and lifter recommended.
Requires '07-'17 factory tensioners, outer sprocket, chains, hardware and performance valve springs on '99-'04 engines.
Conversion camshafts do not fit in a conversion camplate, conversion camshafts use the '07-'17 camplate/oil pump.
Conversion camshafts for '99-'06 Twin Cam engines utilize the '99-'06 inner cam journals with the '07-'16 outer cam journals allowing the use of the '07-'-16 camplates, oil pump, hydraulic chain tensioners and chain drive system.
'99-'01 engines with Magneti Marelli ignition requires use of Andrews sprocket (sold separately) in replacement of HD 34 tooth sprocket #25728-06 in order to install the new style outer cam chain.

Not for '06 Dyna. Factory hydraulic tensioners, outer cam & crank sprockets and thrust washers required (sold separately).

Brand

FEULING PARTS

Vendor Part Number

1017

Application

Exhaust, Intake

Exhaust Close

14°

Exhaust Duration

255°

Exhaust Lift

0,574"

Exhaust Lift at TDC

0,143"

Exhaust Lobe Centerline

113,5°

Exhaust Open

61°

Grind

574 Series

Intake Close

45°

Intake Duration

240°

Intake Lift

0,574"

Intake Lift at TDC

0,163"

Intake Lobe Centerline

105°

Intake Open

15°

Model

Reaper

Product Name

Camshaft

Type

Chain Conversion

Units

Pair

Lisätietoja

Lisätietoja
Paino	1.450000
Korkeus	93
Leveys	163
Brändi	FEULING PARTS
Pituus	184
Saatavuus	Keskusvarastossa
Toimittajan viite	1017
Pistorasia	Ei
Toimitetaan / Lähetetään	1 arkipäivää
Kampanjat	Hinnagarantii
Asennustaulukko (kissa 1)	HARLEY DAVIDSON FLHR 1450 ROAD KING 1999-2006 FLHRC 1450 ROAD KING CLASSIC 2004 FLHRCI 1450 EFI ROAD KING CLASSIC 1999-2006 FLHRI 1450 EFI ROAD KING 1999-2006 FLHRS 1450 ROAD KING CUSTOM 2004-2006 FLHRSI 1450 EFI ROAD KING CUSTOM 2004-2006 FLHT 1450 ELECTRA GLIDE 1999-2005 FLHTC 1450 ELECTRA GLIDE CLASSIC 2002-2005 FLHTCI 1450 EFI ELECTRA GLIDE CLASSIC 1999-2000,2003-2006 FLHTCUI 1450 EFI ELECTRA GLIDE ULTRA CLASSIC 1999-2006 FLHTI 1450 EFI ELECTRA GLIDE 2004-2006 FLHX 1450 STREET GLIDE 2006 FLHXI 1450 EFI STREET GLIDE 2006 FLST 1450 HERITAGE SOFTAIL 2006 FLSTC 1450 HERITAGE SOFTAIL CLASSIC 2000-2006 FLSTCI 1450 EFI HERITAGE SOFTAIL CLASSIC 2001-2006 FLSTF 1450 FAT BOY 2000-2006 FLSTFI 1450 EFI FAT BOY 2001-2006 FLSTFI 1550 EFI FAT BOY 15TH ANNIVERSARY 2005 FLSTI 1450 EFI HERITAGE SOFTAIL 2006 FLSTN 1450 SOFTAIL DELUXE 2005-2006 FLSTNI 1450 EFI SOFTAIL DELUXE 2005-2006 FLSTS 1450 HERITAGE SOFTAIL SPRINGER 2000-2003 FLSTS 1450 SOFTAIL SPRINGER 2006 FLSTSC 1450 SOFTAIL SPRINGER CLASSIC 2005-2006 FLSTSCI 1450 EFI SOFTAIL SPRINGER CLASSIC 2005-2006 FLSTSI 1450 EFI HERITAGE SOFTAIL SPRINGER 2003 FLSTSI 1450 EFI SOFTAIL SPRINGER 2006 FLTR 1450 ROAD GLIDE 1999-2002 FLTRI 1450 EFI ROAD GLIDE 1999-2006 FXD 1450 DYNA SUPER GLIDE 1999-2005 FXDC 1450 DYNA SUPER GLIDE CUSTOM 2005 FXDCI 1450 EFI DYNA SUPER GLIDE CUSTOM 2005 FXDI 1450 EFI DYNA SUPER GLIDE 2004-2005 FXDL 1450 DYNA LOW RIDER 1999-2005 FXDLI 1450 EFI DYNA LOW RIDER 2004-2005 FXDWG 1450 DYNA WIDE GLIDE 1999-2005 FXDWG2 1450 DYNA WIDE GLIDE LIMITED EDITION 2001 FXDWG3 1450 DYNA WIDE GLIDE LIMITED EDITION 2002 FXDWGI 1450 EFI DYNA WIDE GLIDE 2004-2005 FXDX 1450 DYNA SUPER GLIDE SPORT 1999-2004 FXDXI 1450 EFI DYNA SUPER GLIDE SPORT 2004-2005 FXDXT 1450 DYNA SUPER GLIDE T-SPORT 2001-2003 FXST 1450 SOFTAIL 2000-2006 FXSTB 1450 SOFTAIL NIGHT TRAIN 2000-2006 FXSTBI 1450 EFI SOFTAIL NIGHT TRAIN 2003-2006 FXSTC 1340 SOFTAIL CUSTOM 1999 FXSTD 1450 SOFTAIL DEUCE 2000-2006 FXSTDI 1450 EFI SOFTAIL DEUCE 2001-2006 FXSTI 1450 EFI SOFTAIL 2003-2006 FXSTS 1450 SOFTAIL SPRINGER 2000-2006 FXSTSI 1450 EFI SOFTAIL SPRINGER 2003-2006
