CAM KIT CMPLT 574C 99-06

Ole ensimmäinen, joka arvostelee tämän tuotteen

Varastossa

Tuotekoodi

09250534

2 551,00 €

Lähetämme: 21.04.2026–22.04.2026 välisenä aikana

Toimitus osoitteeseen

Laske toimituskulut

Maa

Osavaltio/provinssi

Määrä

Laske osamaksu

▼

Valitse tarjoaja

Käsiraha

€

Lainasumma: –

Maksukausi

24 kuukautta

3 kuukautta 60 kuukautta

Kuukausierä – €

Tuotteen hinta –

Lainasumma –

Kokonaissumma –

Korkokulut –

Korkoprosentti –

Sopimusmaksu –

Hallintomaksu –

Enimmäislainasumma –

Laskuri tiedot ovat suuntaa-antavia. Lopullinen tarjous riippuu tarjoajan ehdoista ja luottopäätöksestä.

Details

For '99-'06 Twin Cam except for '06 Dyna
All necessary components from top-to-bottom of the camchest
Provide maximum reliability, longevity, peak performance, and the coolest engine and oil temperatures obtainable
Quieter and smoother engine operation
Increase oil pressure, scavenge volume and engine oil flow
25°-35° cooler engine temperatures
15°-30° cooler oil temperatures
15-30 more PSI of oil pressure
Eliminate wet sumping, blow by and oily air cleaners

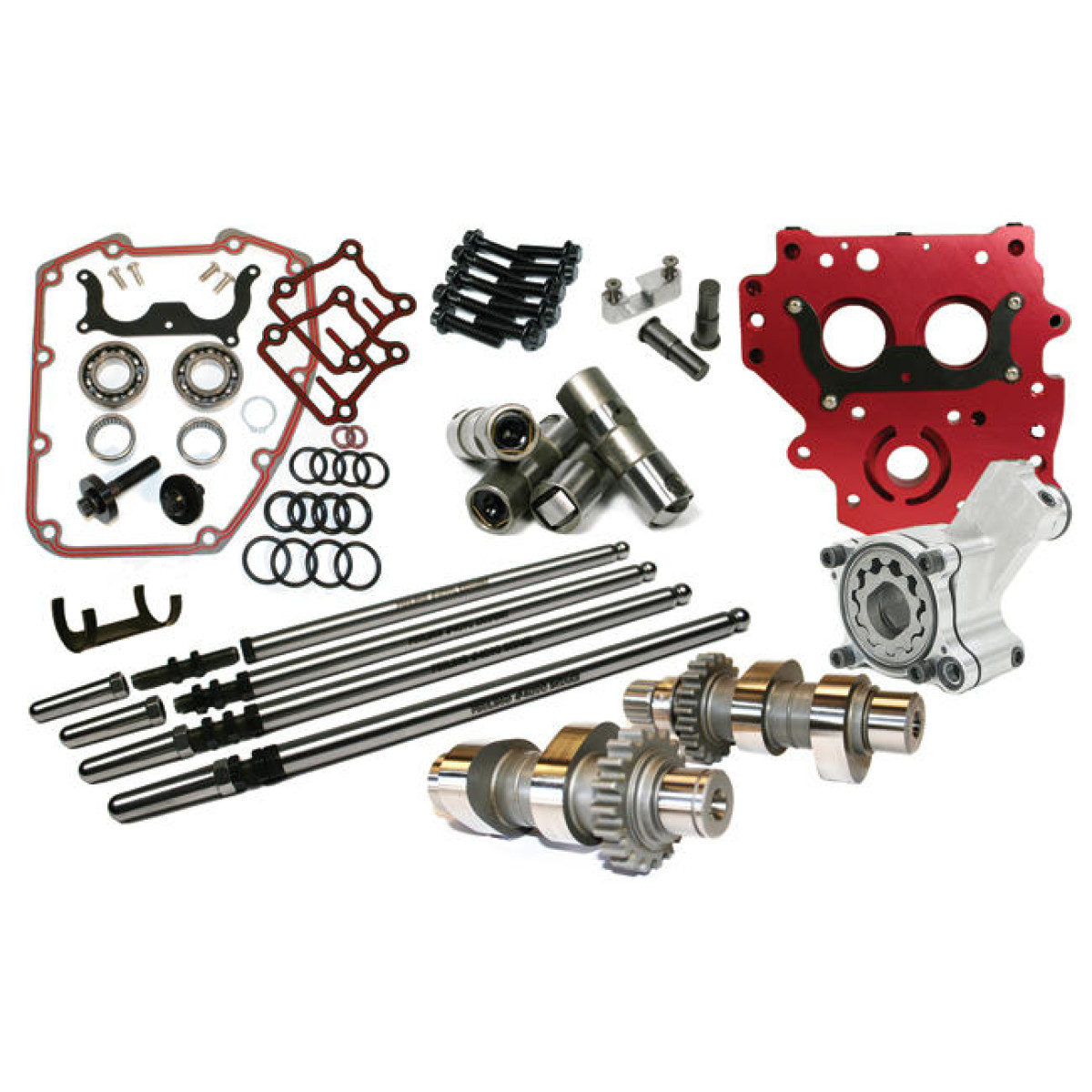

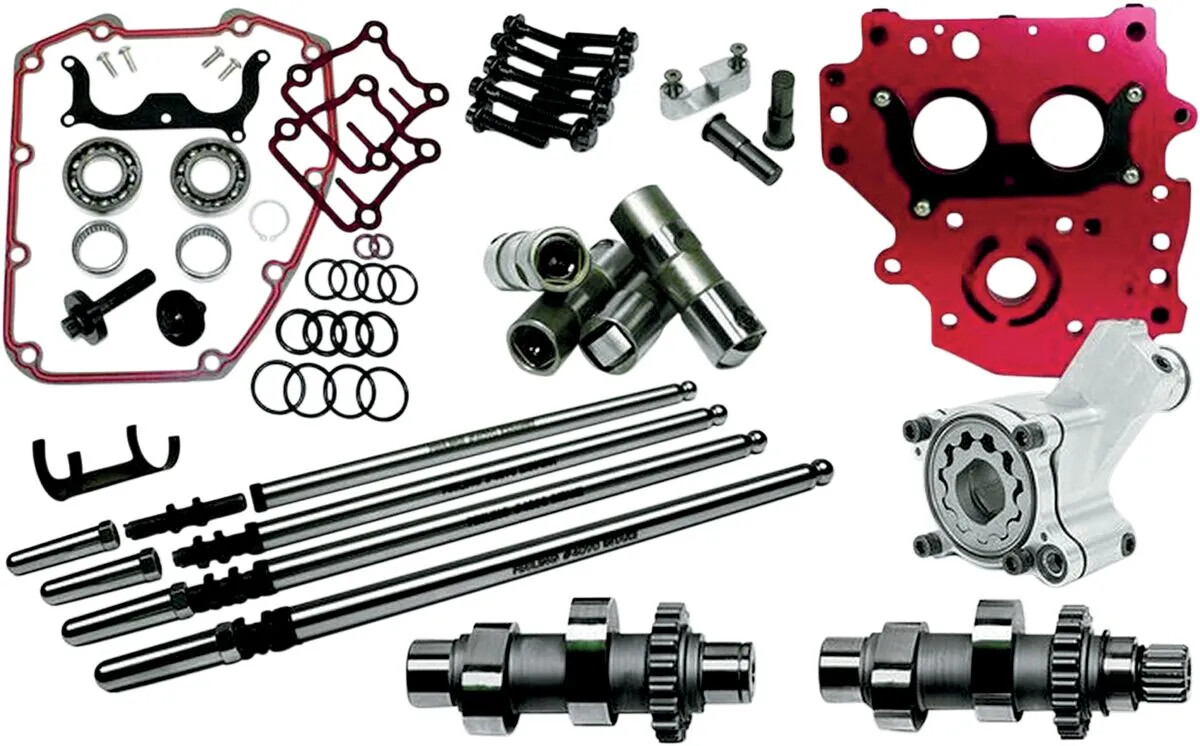

Kit includes Feuling® high volume oil pump, High Flow camplate, Reaper® series camshafts, hydraulic roller lifters, quick install adjustable pushrods or one-piece pushrods, Timken® bearings, gaskets, o-rings, exhaust gaskets, ARP® fasteners, washers moly paste, Loctite®, and hardware

'99 model engines using key way camshafts/sprocket require a new spline style rear cam sprocket sold separately. Kit uses the OE style spring tensioners. See chain drive conversion kit for hydraulic tensioners. Power band for modified engines and an excellent bolt-in for stock 96", 103" and 110" engines. Responds well to modified cylinder heads increased compression ratio, performance exhaust and intake systems. Extremely smooth cam-lobe design creates a smooth and quiet valvetrain. 2100 - 6500 rpm power range. Performance valve springs required on '99-'04 engines and performance pushrods and lifters recommended.

Brand

FEULING PARTS

Vendor Part Number

7202

Application

Intake, Exhaust

Exhaust Close

14°

Exhaust Duration

255°

Exhaust Lift

0,574"

Exhaust Lift at TDC

0,143"

Exhaust Lobe Centerline

113,5°

Exhaust Open

61°

Features

Quick Install Adjustable Pushrods

Grind

574 Series

Intake Close

45°

Intake Duration

240°

Intake Lift

0,574"

Intake Lift at TDC

0,163"

Intake Lobe Centerline

105°

Intake Open

15°

Model

HP+®

Product Name

Camchest Kit

Type

Chain Drive

Units

Kit

Lisätietoja

Lisätietoja
Paino	4.770000
Korkeus	1
Leveys	1
Brändi	FEULING PARTS
Pituus	1
Saatavuus	Tehdastilaus
Toimittajan viite	7202
Pistorasia	Ei
Toimitetaan / Lähetetään	Kysy saatavuudesta
Asennustaulukko (kissa 1)	HARLEY DAVIDSON FLHR 1450 ROAD KING 1999-2006 FLHRC 1450 ROAD KING CLASSIC 2004 FLHRCI 1450 EFI ROAD KING CLASSIC 1999-2006 FLHRI 1450 EFI ROAD KING 1999-2006 FLHRS 1450 ROAD KING CUSTOM 2004-2006 FLHRSEI 1550 ROAD KING SCREAMIN EAGLE 2002 FLHRSEI2 1690 ROAD KING SCREAMIN EAGLE 2003 FLHRSI 1450 EFI ROAD KING CUSTOM 2004-2006 FLHT 1450 ELECTRA GLIDE 1999-2005 FLHTC 1450 ELECTRA GLIDE CLASSIC 2002-2005 FLHTCI 1450 EFI ELECTRA GLIDE CLASSIC 1999-2000,2003-2006 FLHTCSE2 1690 EFI ELECTRA GLIDE SCREAMIN EAGLE 2005 FLHTCUI 1450 EFI ELECTRA GLIDE ULTRA CLASSIC 1999-2006 FLHTCUSE 1690 ELECTRA GLIDE ULTRA CLASSIC SCREAMIN EAGLE 2006 FLHTI 1450 EFI ELECTRA GLIDE 2004-2006 FLHX 1450 STREET GLIDE 2006 FLHXI 1450 EFI STREET GLIDE 2006 FLST 1450 HERITAGE SOFTAIL 2006 FLSTC 1340 HERITAGE SOFTAIL CLASSIC 1999 FLSTC 1450 HERITAGE SOFTAIL CLASSIC 2000-2006 FLSTCI 1450 EFI HERITAGE SOFTAIL CLASSIC 2001-2006 FLSTF 1340 FAT BOY 1999 FLSTF 1450 FAT BOY 2000-2006 FLSTFI 1450 EFI FAT BOY 2001-2006 FLSTFI 1550 EFI FAT BOY 15TH ANNIVERSARY 2005 FLSTFSE 1690 FAT BOY SCREAMIN EAGLE 2005 FLSTFSE2 1690 FAT BOY SCREAMIN EAGLE 2006 FLSTI 1450 EFI HERITAGE SOFTAIL 2006 FLSTN 1450 SOFTAIL DELUXE 2005-2006 FLSTNI 1450 EFI SOFTAIL DELUXE 2005-2006 FLSTS 1340 HERITAGE SOFTAIL SPRINGER 1999 FLSTS 1450 HERITAGE SOFTAIL SPRINGER 2000-2003 FLSTS 1450 SOFTAIL SPRINGER 2006 FLSTSC 1450 SOFTAIL SPRINGER CLASSIC 2005-2006 FLSTSCI 1450 EFI SOFTAIL SPRINGER CLASSIC 2005-2006 FLSTSI 1450 EFI HERITAGE SOFTAIL SPRINGER 2003 FLSTSI 1450 EFI SOFTAIL SPRINGER 2006 FLTR 1450 ROAD GLIDE 1999-2002 FLTRI 1450 EFI ROAD GLIDE 1999-2006 FLTRSEI 1550 ROAD GLIDE SCREAMIN EAGLE 2000 FLTRSEI2 1550 ROAD GLIDE SCREAMIN EAGLE 2001 FXD 1450 DYNA SUPER GLIDE 1999-2005 FXDC 1450 DYNA SUPER GLIDE CUSTOM 2005 FXDCI 1450 EFI DYNA SUPER GLIDE CUSTOM 2005 FXDI 1450 EFI DYNA SUPER GLIDE 2004-2005 FXDL 1450 DYNA LOW RIDER 1999-2005 FXDLI 1450 EFI DYNA LOW RIDER 2004-2005 FXDS-CON 1340 DYNA GLIDE LOW RIDER CONVERTIBLE 1999-2000 FXDS-CON 1340 DYNA SUPER GLIDE CONVERTIBLE 1999-2000 FXDWG 1450 DYNA WIDE GLIDE 1999-2005 FXDWG2 1450 DYNA WIDE GLIDE LIMITED EDITION 2001 FXDWG3 1450 DYNA WIDE GLIDE LIMITED EDITION 2002 FXDWGI 1450 EFI DYNA WIDE GLIDE 2004-2005 FXDX 1450 DYNA SUPER GLIDE SPORT 1999-2004 FXDXI 1450 EFI DYNA SUPER GLIDE SPORT 2004-2005 FXDXT 1450 DYNA SUPER GLIDE T-SPORT 2001-2003 FXR2 1340 SUPER GLIDE SCREAMIN EAGLE 1999 FXR3 1340 SUPER GLIDE SCREAMIN EAGLE 1999 FXR4 1340 SUPER GLIDE SCREAMIN EAGLE 2000 FXST 1340 SOFTAIL 1999 FXST 1450 SOFTAIL 2000-2006 FXSTB 1340 SOFTAIL NIGHT TRAIN 1999 FXSTB 1450 SOFTAIL NIGHT TRAIN 2000-2006 FXSTBI 1450 EFI SOFTAIL NIGHT TRAIN 2003-2006 FXSTC 1340 SOFTAIL CUSTOM 1999 FXSTD 1450 SOFTAIL DEUCE 2000-2006 FXSTDI 1450 EFI SOFTAIL DEUCE 2001-2006 FXSTDSE 1550 SOFTAIL DEUCE SCREAMIN EAGLE 2003 FXSTDSE2 1550 SOFTAIL DEUCE SCREAMIN EAGLE 2004 FXSTI 1450 EFI SOFTAIL 2003-2006 FXSTS 1340 SOFTAIL SPRINGER 1999 FXSTS 1450 SOFTAIL SPRINGER 2000-2006 FXSTSI 1450 EFI SOFTAIL SPRINGER 2003-2006
