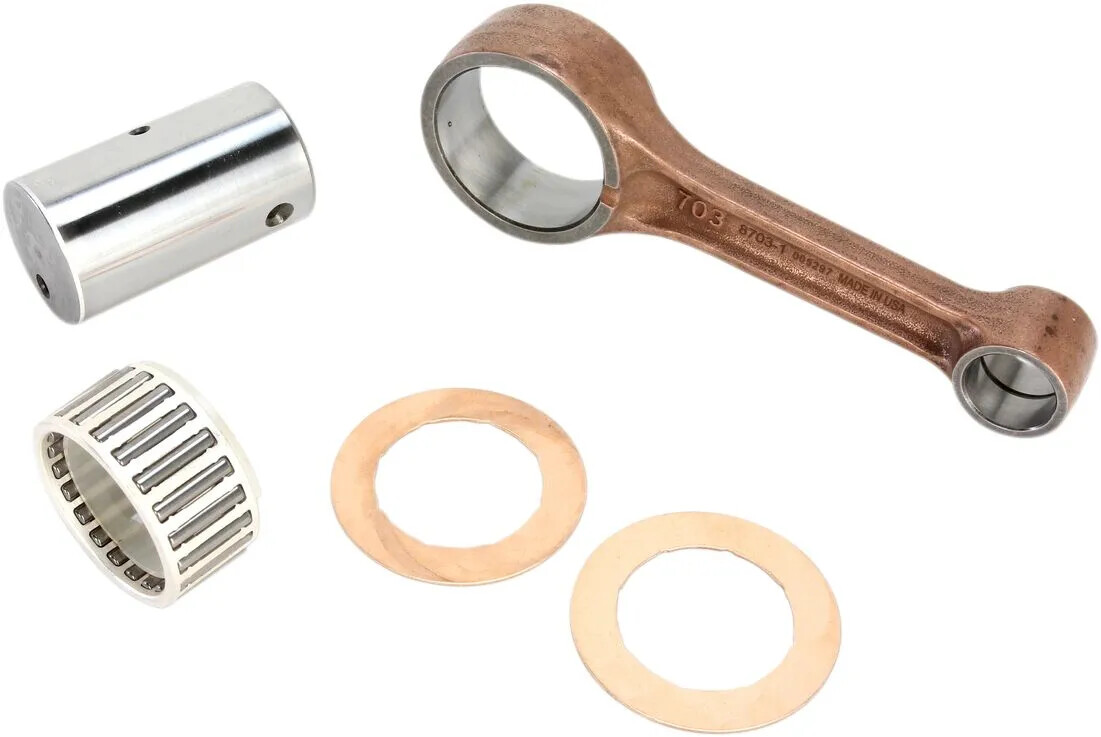

CONNECTING ROD 8703

Ole ensimmäinen, joka arvostelee tämän tuotteen

Varastossa

Tuotekoodi

09230355

Special Price 139,00 € Regular Price 174,00 €

Lähetämme: 21.04.2026–22.04.2026 välisenä aikana

Toimitus osoitteeseen

Laske toimituskulut

Maa

Osavaltio/provinssi

Määrä

Laske osamaksu

▼

Valitse tarjoaja

Käsiraha

€

Lainasumma: –

Maksukausi

24 kuukautta

3 kuukautta 60 kuukautta

Kuukausierä – €

Tuotteen hinta –

Lainasumma –

Kokonaissumma –

Korkokulut –

Korkoprosentti –

Sopimusmaksu –

Hallintomaksu –

Enimmäislainasumma –

Laskuri tiedot ovat suuntaa-antavia. Lopullinen tarjous riippuu tarjoajan ehdoista ja luottopäätöksestä.

Details

Heavy-duty OE replacement connecting rods
Certified 8620 AISI steel provides superior strength
Crankpins are manufactured from hot-rolled ASTM 4115 and case hardened to level of 58-62Rc
Features the latest in caged needle roller bearing designs for high rpm longevity
Uniquely designed big end uses strategically located side scalloping and vent slots to minimize bearing race distortion at high rpm
Small ends are double drilled to supply extra lubrication and cooling to the wrist pin bearing, which is especially important when the piston crown is close to the wrist pin bearing
Shot-peened to eliminate surface stress risers and to smoothly blend together the rod forging's radiuses
Double honing produces an ultra-round bearing surface for reliability at high rpm
Most rod assemblies are sold complete with rod, crank pin, crank pin bearing, top-end bearing and silver-coated bronze phosphor thrust washers
Made in the USA
Compatible with Hot Rods and OE crankshafts.

Connecting Rod Big End I.D. 43.000 mm Connecting Rod Big End Width: 22.000 mm Connecting Rod Center-to-Center: 121.500 mm Connecting Rod Small End I.D. 20.000 mm Connecting Rod Small End Width: 22.000 mm Thrust Washer Thickness: 1.00 mm Pin Length: 61.800 mm Kit Includes: • Connecting Rod • Crank Pin • Crank Pin Bearing • Thrust Washers

Brand

HOT RODS

Vendor Part Number

8703

Displacement

450 cc

Engine Type

4-Cycle

Material

8620 Steel

Product Name

Connecting Rod Kit

Units

Kit

Lisätietoja

Lisätietoja
Paino	0.850000
Korkeus	47
Leveys	87
Brändi	HOT RODS
Pituus	196
Viivakoodi EAN13	723980406838
Saatavuus	Keskusvarastossa
Toimittajan viite	8703
Pistorasia	Ei
Toimitetaan / Lähetetään	1-2 arkipäivää
Kampanjat	Hinnagarantii
Asennustaulukko (kissa 1)	YAMAHA YFM 450 D 4X4 GRIZZLY 2014 YFM 450 D GRIZZLY 4X4 2014 YFM 450 DH 4X4 GRIZZLY HUNTER 2014 YFM 450 DH GRIZZLY 4X4 HUNTER 2014 YFM 450 FA 4X4 GRIZZLY IRS 2012-2014 YFM 450 FA 4X4 KODIAK 2003-2006 YFM 450 FA GRIZZLY 4X4 IRS 2012-2014 YFM 450 FA KODIAK 4X4 2003-2006 YFM 450 FA SE 4X4 KODIAK BLACK CARBON 2005 YFM 450 FA SE 4X4 KODIAK SPECIAL EDITION 2006 YFM 450 FAH 4X4 KODIAK HARDWOODS 2004 YFM 450 FAH 4X4 KODIAK HUNTER 2005-2006 YFM 450 FAH 4X4 KODIAK REALTREE 2003 YFM 450 FAH KODIAK 4X4 HARDWOODS 2004 YFM 450 FAH KODIAK 4X4 HUNTER 2005-2006 YFM 450 FAH KODIAK 4X4 REALTREE 2003 YFM 450 FA_SE KODIAK 4X4 BLACK CARBON 2005 YFM 450 FA_SE KODIAK 4X4 SPECIAL EDITION 2006 YFM 450 FG 4X4 GRIZZLY 2007-2013 YFM 450 FG GRIZZLY 4X4 2007-2013 YFM 450 FG OH 4X4 GRIZZLY OUTDOORSMAN EDITION 2007 YFM 450 FG SE 4X4 GRIZZLY SILVER EDITION 2007 YFM 450 FG SP 4X4 GRIZZLY SPECIAL EDITION 2008 YFM 450 FGH 4X4 GRIZZLY HUNTER 2007-2013 YFM 450 FGH GRIZZLY 4X4 HUNTER 2007-2013 YFM 450 FGP 4X4 GRIZZLY EPS 2011-2013 YFM 450 FGP GRIZZLY 4X4 EPS 2011-2013 YFM 450 FGPH 4X4 GRIZZLY EPS HUNTER 2011-2013 YFM 450 FGPH GRIZZLY 4X4 EPS HUNTER 2011-2013 YFM 450 FG_OH GRIZZLY 4X4 OUTDOORSMAN EDITION 2007 YFM 450 FG_SE GRIZZLY 4X4 SILVER EDITION 2007 YFM 450 FG_SP GRIZZLY 4X4 SPECIAL EDITION 2008 YFM 450 FWAN 4X4 GRIZZLY EPS 2012-2014 YFM 450 FWAN GRIZZLY 4X4 EPS 2012-2014 YFM 450 FX 4X4 WOLVERINE SPORT 2006-2010 YFM 450 FX SE 4X4 WOLVERINE SPORT SE 2007-2008 YFM 450 FX WOLVERINE 4X4 SPORT 2006-2010 YFM 450 FX_SE WOLVERINE 4X4 SPORT SE 2007-2008 YFM 450 P 4X4 GRIZZLY EPS 2014 YFM 450 P GRIZZLY 4X4 EPS 2014 YFM 450 PH 4X4 GRIZZLY EPS HUNTER 2014 YFM 450 PH GRIZZLY 4X4 EPS HUNTER 2014 YXR 450 F 4X4 RHINO 2007-2009 YXR 450 F RHINO 4X4 2007-2009 YXR 450 F SE 4X4 RHINO SPECIAL EDITION 2007 YXR 450 F SP 4X4 RHINO SPECIAL EDITION 2008 YXR 450 FA 4X4 RHINO 2006 YXR 450 FA RHINO 4X4 2006 YXR 450 FAH 4X4 RHINO HUNTER REALTREE CAMO 2006 YXR 450 FAH RHINO 4X4 HUNTER REALTREE CAMO 2006 YXR 450 FH 4X4 RHINO HUNTER 2007-2009 YXR 450 FH RHINO 4X4 HUNTER 2007-2009 YXR 450 F_SE RHINO 4X4 SPECIAL EDITION 2007 YXR 450 F_SP RHINO 4X4 SPECIAL EDITION 2008
