CAM 475G W/PLT WC/BLK M8

Ole ensimmäinen, joka arvostelee tämän tuotteen

Varastossa

Tuotekoodi

09251308

Special Price 2 386,00 € Regular Price 2 727,00 €

Lähetämme: 21.04.2026–22.04.2026 välisenä aikana

Toimitus osoitteeseen

Laske toimituskulut

Maa

Osavaltio/provinssi

Määrä

Laske osamaksu

▼

Valitse tarjoaja

Käsiraha

€

Lainasumma: –

Maksukausi

24 kuukautta

3 kuukautta 60 kuukautta

Kuukausierä – €

Tuotteen hinta –

Lainasumma –

Kokonaissumma –

Korkokulut –

Korkoprosentti –

Sopimusmaksu –

Hallintomaksu –

Enimmäislainasumma –

Laskuri tiedot ovat suuntaa-antavia. Lopullinen tarjous riippuu tarjoajan ehdoista ja luottopäätöksestä.

Details

All parts in each kit are matched to ensure superior quality, fit, finish and performance
Oil pump and cam plate are precision-machined from billet aluminum with a blue anodized finish
Passage plugs removable for servicing
Independent scavenge sections for the flywheel cavity and cam chest
Debris screens in both scavenge pickups
Increased oil flow capacity on both the feed and scavenge sides
Adjustable Pressure Relief Valve is adjustable with unit installed in engine
Magnet in cam chest to help to stop debris from entering oil pump
S&S Quickee Pushrods with finished pushrod tubes
S&S premium tappets
Billet aluminum tappet cuffs have a hard-anodized black coating and are stronger than stock to eliminate distortion
Improved tappet stability in high-lift and high-rpm situations
Provides improved cam timing accuracy and eliminates the stock cam chain tensioner
Includes outer drive gears, all gaskets, bearings, and hardware required for a complete installation
Made in the USA

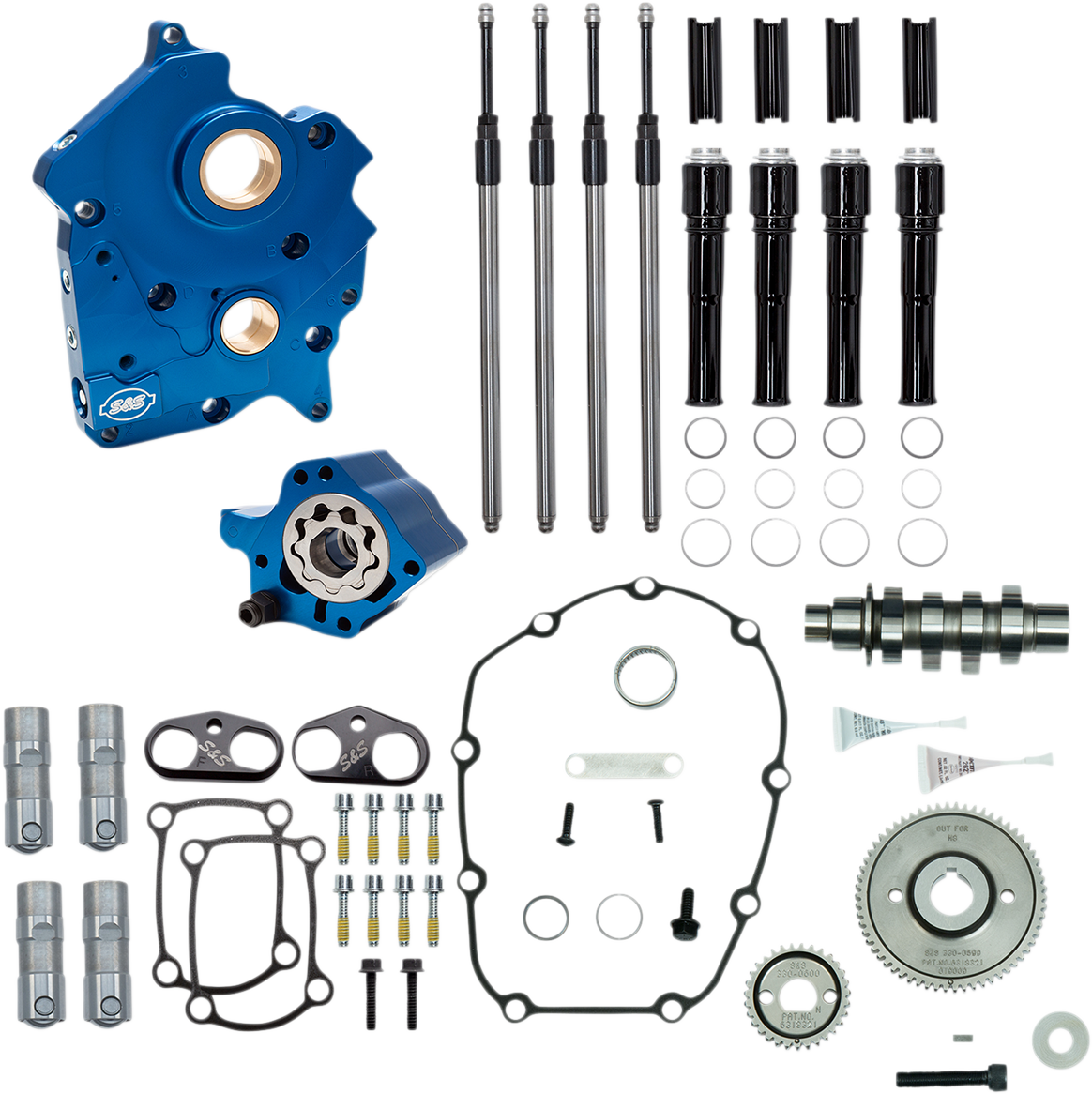

475 is bolt-in 100 horsepower cam. Kit Includes: • 475G Camshaft Kit • Quickee Pushrod Kit with Gloss Black Covers • Tappet Cuffs Lifter Guide • Oil Pump with Cam Plate • Hydraulic Tappet Kit

Brand

S&S CYCLE

Vendor Part Number

310-1010A

Application

Water Cooled

Exhaust Close

28,5° Front, 20,2° Rear

Exhaust Duration

263,9° Front, 252,5° Rear

Exhaust Lift

0,475"

Exhaust Lift at TDC

0,208" Front, 0,170" Rear

Exhaust Lobe Centerline

103,5° Front, 106,0° Rear

Exhaust Open

55,5° Front, 52,2° Rear

Features

Gloss Black Pushrod Tubes

Grind

475G

Intake Close

27,2° Front, 31,2° Rear

Intake Duration

213,5° Front, 213,5° Rear

Intake Lift

0,475"

Intake Lift at TDC

0,107" Front, 0,093" Rear

Intake Lobe Centerline

100,5° Front, 104,5° Rear

Intake Open

6,2° Front, 2,2° Rear

Model

475 HP

Product Name

Camchest Kit

Type

Gear

Units

Kit

Lisätietoja

Lisätietoja
Paino	5.600000
Korkeus	125
Leveys	290
Brändi	S+S CYCLE
Pituus	420
Saatavuus	Keskusvarastossa
Toimittajan viite	310-1010A
Pistorasia	Ei
Toimitetaan / Lähetetään	1 arkipäivää
Kampanjat	Hinnagarantii
Asennustaulukko (kissa 1)	HARLEY DAVIDSON FLHTCU 1750 ABS ELECTRA GLIDE ULTRA CLASSIC 107 2017-2018 FLHTCUTG 1868 ABS TRI GLIDE ULTRA 114 2021-2022 FLHTCUTGSE 1923 ABS TRI GLIDE CVO 117 2022 FLHTCUTGSE 1923 ABS TRI GLIDE ULTRA CVO 117 2021 FLHTK 1750 ABS ELECTRA GLIDE ULTRA LIMITED 107 2017 FLHTK 1750 ABS ULTRA LIMITED 107 2018 FLHTK 1750 ABS ULTRA LIMITED ANNIVERSARY 107 2018 FLHTK 1750 ABS ULTRA LIMITED SHRINE EDITION 107 2018 FLHTK 1868 ABS GLIDE ULTRA LIMITED 114 2019-2022 FLHTK 1868 ABS ULTRA LIMITED SHRINE EDITION 114 2019-2021 FLHTKL 1750 ABS ELECTRA GLIDE ULTRA LIMITED LOW 107 2017 FLHTKL 1750 ABS ULTRA LIMITED LOW 107 2018 FLHTKL 1868 ABS ULTRA LIMITED LOW 114 2019 FLHTKSE 1868 ABS ELECTRA GLIDE ULTRA LIMITED CVO 114 2017 FLHTKSE 1923 ABS ULTRA LIMITED CVO 117 2018-2021 FLHTKSE 1923 ABS ULTRA LIMITED CVO ANNIVERSARY 117 2018 FLHXSE 1868 ABS STREET GLIDE CVO 114 2017 FLHXSE 1923 ABS STREET GLIDE CVO 117 2018-2022 FLTRK 1868 ABS ROAD GLIDE LIMITED 114 2020-2022 FLTRKSE 1923 ABS ROAD GLIDE LIMITED CVO 117 2022 FLTRU 1750 ABS ROAD GLIDE ULTRA 107 2017-2018 FLTRU 1868 ABS ROAD GLIDE ULTRA 114 2019 FLTRXSE 1923 ABS ROAD GLIDE CVO 117 2018-2022
