CAM 475G W/PLT WC/CHR M8

Ole ensimmäinen, joka arvostelee tämän tuotteen

Varastossa

Tuotekoodi

09251300

Special Price 2 386,00 € Regular Price 2 727,00 €

Lähetämme: 21.04.2026–22.04.2026 välisenä aikana

Toimitus osoitteeseen

Laske toimituskulut

Maa

Osavaltio/provinssi

Määrä

Laske osamaksu

▼

Valitse tarjoaja

Käsiraha

€

Lainasumma: –

Maksukausi

24 kuukautta

3 kuukautta 60 kuukautta

Kuukausierä – €

Tuotteen hinta –

Lainasumma –

Kokonaissumma –

Korkokulut –

Korkoprosentti –

Sopimusmaksu –

Hallintomaksu –

Enimmäislainasumma –

Laskuri tiedot ovat suuntaa-antavia. Lopullinen tarjous riippuu tarjoajan ehdoista ja luottopäätöksestä.

Details

All parts in each kit are matched to ensure superior quality, fit, finish and performance
Oil pump and cam plate are precision-machined from billet aluminum with a blue anodized finish
Passage plugs removable for servicing
Independent scavenge sections for the flywheel cavity and cam chest
Debris screens in both scavenge pickups
Increased oil flow capacity on both the feed and scavenge sides
Adjustable Pressure Relief Valve is adjustable with unit installed in engine
Magnet in cam chest to help to stop debris from entering oil pump
S&S Quickee Pushrods with finished pushrod tubes
S&S premium tappets
Billet aluminum tappet cuffs have a hard-anodized black coating and are stronger than stock to eliminate distortion
Improved tappet stability in high-lift and high-rpm situations
Provides improved cam timing accuracy and eliminates the stock cam chain tensioner
Includes outer drive gears, all gaskets, bearings, and hardware required for a complete installation
Made in the USA

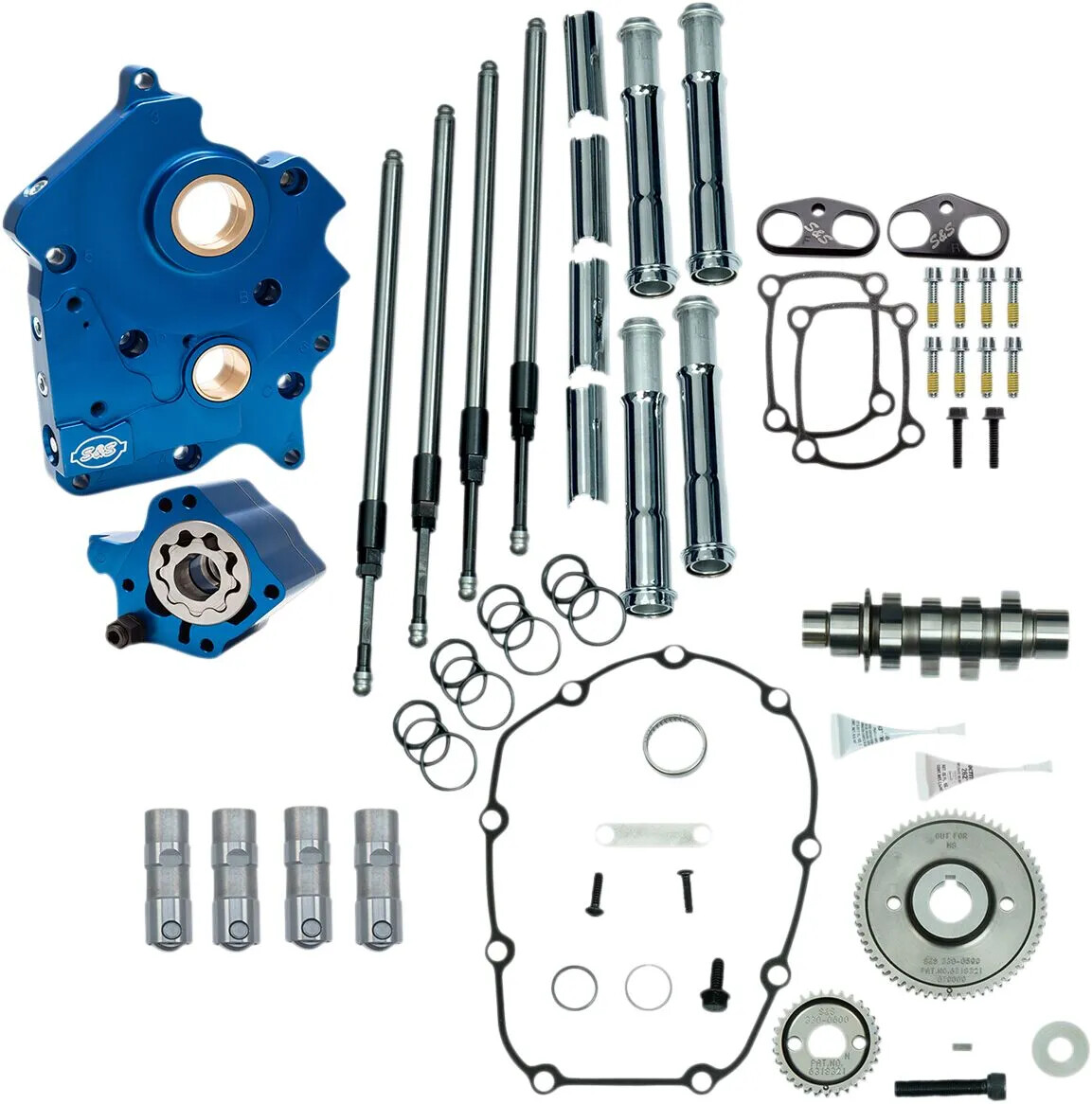

475 is a bolt-in 100 horsepower cam. Kit Includes: • 475G Camshaft Kit • Quickee Pushrod Kit with Chrome Covers • Tappet Cuffs Lifter Guide • Oil Pump with Cam Plate • Hydraulic Tappet Set

Brand

S&S CYCLE

Vendor Part Number

310-1002A

Application

Water Cooled

Exhaust Close

28,5° Front, 20,2° Rear

Exhaust Duration

263,9° Front, 252,5° Rear

Exhaust Lift

0,475"

Exhaust Lift at TDC

0,208" Front, 0,170" Rear

Exhaust Lobe Centerline

103,5° Front, 106,0° Rear

Exhaust Open

55,5° Front, 52,2° Rear

Features

Chrome Pushrod Tubes

Grind

475G

Intake Close

27,2° Front, 31,2° Rear

Intake Duration

213,5° Front, 213,5° Rear

Intake Lift

0,475"

Intake Lift at TDC

0,107" Front, 0,093" Rear

Intake Lobe Centerline

100,5° Front, 104,5° Rear

Intake Open

6,2° Front, 2,2° Rear

Model

475 HP

Product Name

Camchest Kit

Type

Gear

Units

Kit

Lisätietoja

Lisätietoja
Paino	5.520000
Korkeus	130
Leveys	290
Brändi	S+S CYCLE
Pituus	430
Saatavuus	Keskusvarastossa
Toimittajan viite	310-1002A
Pistorasia	Ei
Toimitetaan / Lähetetään	1 arkipäivää
Kampanjat	Hinnagarantii
