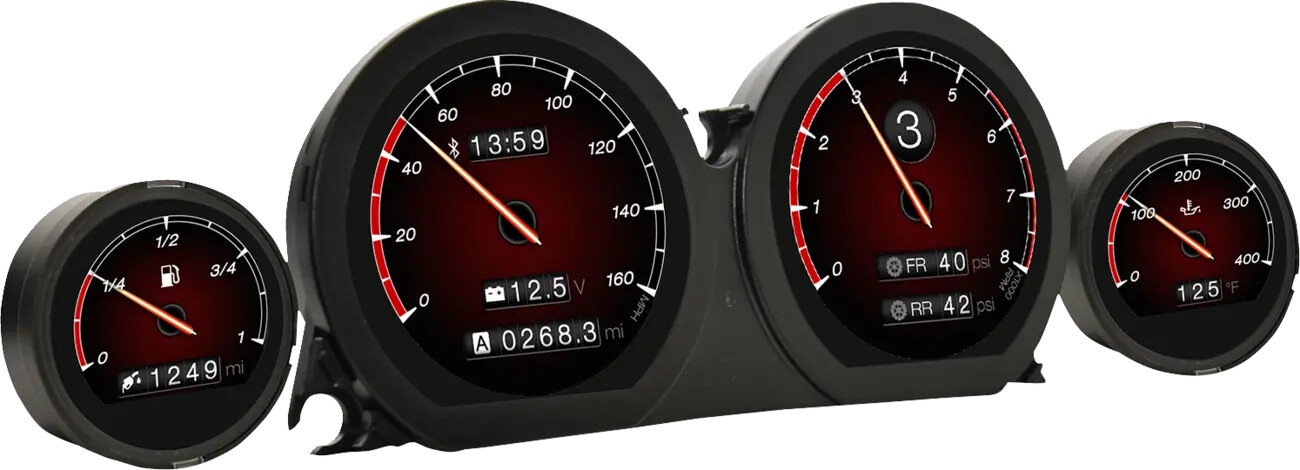

GAUGES TFT METERS 14-23 HD

Ole ensimmäinen, joka arvostelee tämän tuotteen

Varastossa

Tuotekoodi

22100702

1 249,00 €

Lähetämme: 20.04.2026–21.04.2026 välisenä aikana

Toimitus osoitteeseen

Laske toimituskulut

Maa

Osavaltio/provinssi

Määrä

Laske osamaksu

▼

Valitse tarjoaja

Käsiraha

€

Lainasumma: –

Maksukausi

24 kuukautta

3 kuukautta 60 kuukautta

Kuukausierä – €

Tuotteen hinta –

Lainasumma –

Kokonaissumma –

Korkokulut –

Korkoprosentti –

Sopimusmaksu –

Hallintomaksu –

Enimmäislainasumma –

Laskuri tiedot ovat suuntaa-antavia. Lopullinen tarjous riippuu tarjoajan ehdoista ja luottopäätöksestä.

Details

Plug and play
Color customization with daytime and nighttime modes
Features a smartphone integration that gives full control of dashboard directly from the device
Connects gauges to phone with the KOSO K Link app and monitor real-time data of the bike: speed, fuel level, oil temperature, gear indicator, RPM, best performance, horsepower, tire pressure and more
Can see vehicle’s location on the app and never have to search for it again in crowded places
Match your motorcycle’s style by instantly changing between the analog and digital interface, as well as seven different backlight colors, providing up to 14 unique display combinations
K Link app also allows to check system health and maintenance with its diagnostics feature
Optional air pressure sensor for models equipped with air suspension is available separately
Specifications:
Tachometer (0 - 8,000), RPM Shift Light (1,000 - 8,000 RPM), Maximum RPM (0 - 8,000 RPM)
Speedometer (0 - 199 MPH), Maximum Speed Record (0 - 199 MPH), Overspeed Warning (20 - 199 MPH)
Odometer (0 - 999,999 miles), Tripmeter A/B (0 - 9,999 miles), Mileage Maintenance (300 - 10,000 miles)
Engine Temperature (40°F - 572°F), Oil Temperature Meter (32°F - 248°F), Maximum Oil Temperature Record (40°F - 572°F) Effective Temperature Range (-4°F - 140°F)
Volt Meter (DC 8V - 18V), Effective Voltage (DC 12V)
To access settings on CVO models, must turn on the run/stop switch so that the bike will not turn off. Then make adjustments to the settings on the gauge.

Optional air pressure sensor kit sold separately (part # 2212-0901).

Brand

KOSO NORTH AMERICA

Vendor Part Number

BA064930

Depth

51 mm (2"), 44,45 mm (1-3/4")

Housing Color

Black

Length

70 mm (2-3/4"), 27 cm (10-5/8")

Model

HD-03X

Product Name

Gauge

Style

Electronic

Type

Multi-Function

Units

Kit

Width

95 mm (3-3/4"), 70 mm (2-3/4")

Lisätietoja

Lisätietoja
Paino	0.720000
Korkeus	102
Leveys	171
Brändi	KOSO NORTH AMERICA
Pituus	343
Saatavuus	Tehdastilaus
Toimittajan viite	BA064930
Pistorasia	Ei
Toimitetaan / Lähetetään	Kysy saatavuudesta
