RINGS 1340 SHV 005

Ole ensimmäinen, joka arvostelee tämän tuotteen

Varastossa

Tuotekoodi

DS750867

Special Price 17,50 € Regular Price 24,00 €

Lähetämme: 13.04.2026–15.04.2026 välisenä aikana

Toimitus osoitteeseen

Laske toimituskulut

Maa

Osavaltio/provinssi

Määrä

Laske osamaksu

▼

Valitse tarjoaja

Käsiraha

€

Lainasumma: –

Maksukausi

24 kuukautta

3 kuukautta 60 kuukautta

Kuukausierä – €

Tuotteen hinta –

Lainasumma –

Kokonaissumma –

Korkokulut –

Korkoprosentti –

Sopimusmaksu –

Hallintomaksu –

Enimmäislainasumma –

Laskuri tiedot ovat suuntaa-antavia. Lopullinen tarjous riippuu tarjoajan ehdoista ja luottopäätöksestä.

Details

Includes top compression rings, second compression rings, and oil control rings
Top Compression Rings are Barrel Face
Helps in the the heat transfer process between the piston and cylinder wall
Controls combustion chamber gases allowing the piston to transfer the energy of the expanding combustion gases, to the crankshaft
Second Compression Ring are Reverse Torsional Taper Face
Promotes side sealing that prevents oil from being forced under and behind the ring resulting in better oil economy
Reverse twist ring along with a taper-machined ring face duplicates the OD bottom side scraping edge of a positive twist torsional ring
Oil Control Rings are Three Piece Flex Vent
Three-piece design allows rails to be manufactured with a small cross sectional area for better conformability to bore
Provides uniform pressure through four steel rails and two expanders assuring positive oil control
Made in the USA
Due to the thermal conductivity and design of KB pistons, special attention is required to the top ring end gap. Please read instructions furnished with piston for correct ring installation.
Includes enough rings for two pistons (unless noted).
Two rings per groove, except for the rails that will be two rail rings per one expander ring.

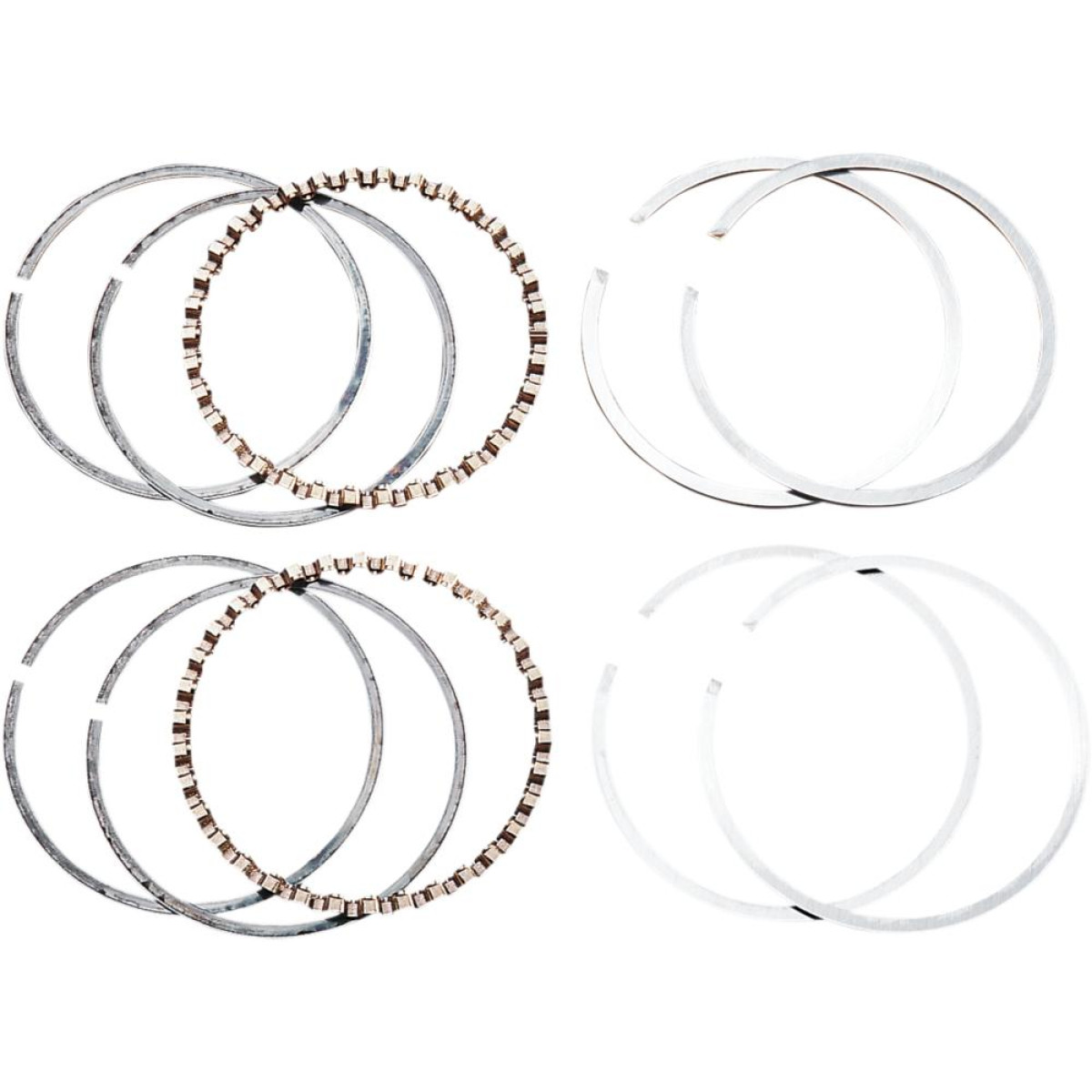

Kit Includes: • 2x Top Compression Rings • 2x Second Compression Rings • 2x Expander Rings • 4x Steel Rails

Brand

HASTINGS

Vendor Part Number

WG1145313|2M6127005

Bore - Oversize

+0,005"

Bore Oversize

+0.005"

Bore Size

3,498"

Product Name

Piston Ring Set

Ring Material

Moly Coated

Style

Performance Replacement

Units

Set

Lisätietoja

Lisätietoja
Paino	0.100000
Korkeus	32
Leveys	128
Brändi	HASTINGS
Pituus	132
Viivakoodi EAN13	75538254843
Saatavuus	Keskusvarastossa
Toimittajan viite	WG1145313\|2M6127005
Pistorasia	Ei
Toimitetaan / Lähetetään	1-3 arkipäivää
Kampanjat	Outlet
Asennustaulukko (kissa 1)	HARLEY DAVIDSON FLH 1200 ELECTRA GLIDE 1978-1980 FLH 1340 ELECTRA GLIDE 1979-1982 FLH 1340 ELECTRA GLIDE BELT DRIVE 1984 FLHR 1340 ROAD KING 1994-1998 FLHRCI 1340 EFI ROAD KING CLASSIC 1998 FLHS 1200 ELECTRA GLIDE SPORT 1980 FLHS 1340 ELECTRA GLIDE SPORT 1987-1993 FLHT 1340 ELECTRA GLIDE 1983,1986-1987 FLHTC 1340 ELECTRA GLIDE CLASSIC 1983-1988 FLHTCI 1340 EFI ELECTRA GLIDE CLASSIC 1996-1998 FLHTCU 1340 ELECTRA GLIDE ULTRA CLASSIC 1989-1997 FLHTCUI 1340 EFI ELECTRA GLIDE ULTRA CLASSIC 1996-1998 FLHTCUI 1340 EFI ELECTRA GLIDE ULTRA CLASSIC SPECIAL ANNIVERSARY EDITION 1995 FLST 1340 HERITAGE SOFTAIL 1986-1990 FLSTC 1340 HERITAGE SOFTAIL CLASSIC 1988-1999 FLSTF 1340 FAT BOY 1990-1999 FLSTN 1340 HERITAGE SOFTAIL SPECIAL/NOSTALGIA 1993-1995 FLSTS 1340 HERITAGE SOFTAIL SPRINGER 1997-1999 FLTC 1340 TOUR GLIDE CLASSIC 1983-1991 FLTCU 1340 TOUR GLIDE ULTRA CLASSIC 1989-1996 FLTRI 1340 EFI ROAD GLIDE 1998 FXB 1340 STURGIS 1980-1982 FXD 1340 DYNA SUPER GLIDE 1995-1998 FXDC 1340 DYNA GLIDE CUSTOM 1992 FXDG 1340 1983 FXDL 1340 DYNA LOW RIDER 1993-1998 FXDS-CON 1340 DYNA SUPER GLIDE CONVERTIBLE 1994-1998 FXDWG 1340 DYNA WIDE GLIDE 1993-1998 FXE 1340 SUPER GLIDE 1981-1984 FXEF 1340 FAT BOB 1979-1981 FXLR 1340 LOW RIDER CUSTOM 1987-1994 FXR 1340 II SUPER GLIDE II 1982-1983 FXR 1340 SUPER GLIDE 1986-1994 FXRC 1340 LOW GLIDE CUSTOM 1985,1987 FXRD 1340 DISC GLIDE 1986 FXRDG 1340 DISC GLIDE 1984 FXRS 1340 II SUPER GLIDE II 1982 FXRS 1340 LOW GLIDE 1984-1985 FXRS 1340 LOW RIDER 1986-1992 FXRS CON. 1340 LOW RIDER CONVERTIBLE 1990-1993 FXRS-SP 1340 LOW RIDER SPORT EDITION (FXRSL) 1988-1993 FXRT 1340 SPORT GLIDE 1984-1992 FXS 1340 LOW RIDER 1979-1982 FXSB 1340 LOW RIDER 1984 FXST 1340 SOFTAIL 1985-1990,1999 FXSTB 1340 SOFTAIL NIGHT TRAIN 1999 FXSTC 1340 SOFTAIL CUSTOM 1986-1998 FXSTS 1340 SOFTAIL SPRINGER 1988-1999 FXSTSB 1340 BAD BOY 1995-1997 FXWG 1340 WIDE GLIDE 1984-1986 XL 1200 C SPORTSTER CUSTOM 1996-2003 XL 1200 S SPORT 1996-2003 XL 883 C SPORTSTER 53 CUSTOM 1999-2003 XL 883 C SPORTSTER CUSTOM 2007-2009 XL 883 L ABS SUPER LOW 2014-2017 XL 883 L LOW 2005-2010 XL 883 L SUPER LOW 2011-2017 XL 883 N ABS IRON 2014-2017 XL 883 N IRON 2009-2017 XL 883 R ROADSTER 2002-2003,2006-2007 XL 883 SPORTSTER 2005-2008 XL50 1200 50TH ANNIVERSARY 2007 XLH 1200 SPORTSTER 1988-2003 XLH 883 SPORTSTER 1986-1987,1990-2003 XLH 883 SPORTSTER DELUXE 1988-1995 XLH 883 SPORTSTER HUGGER 1988-2003
